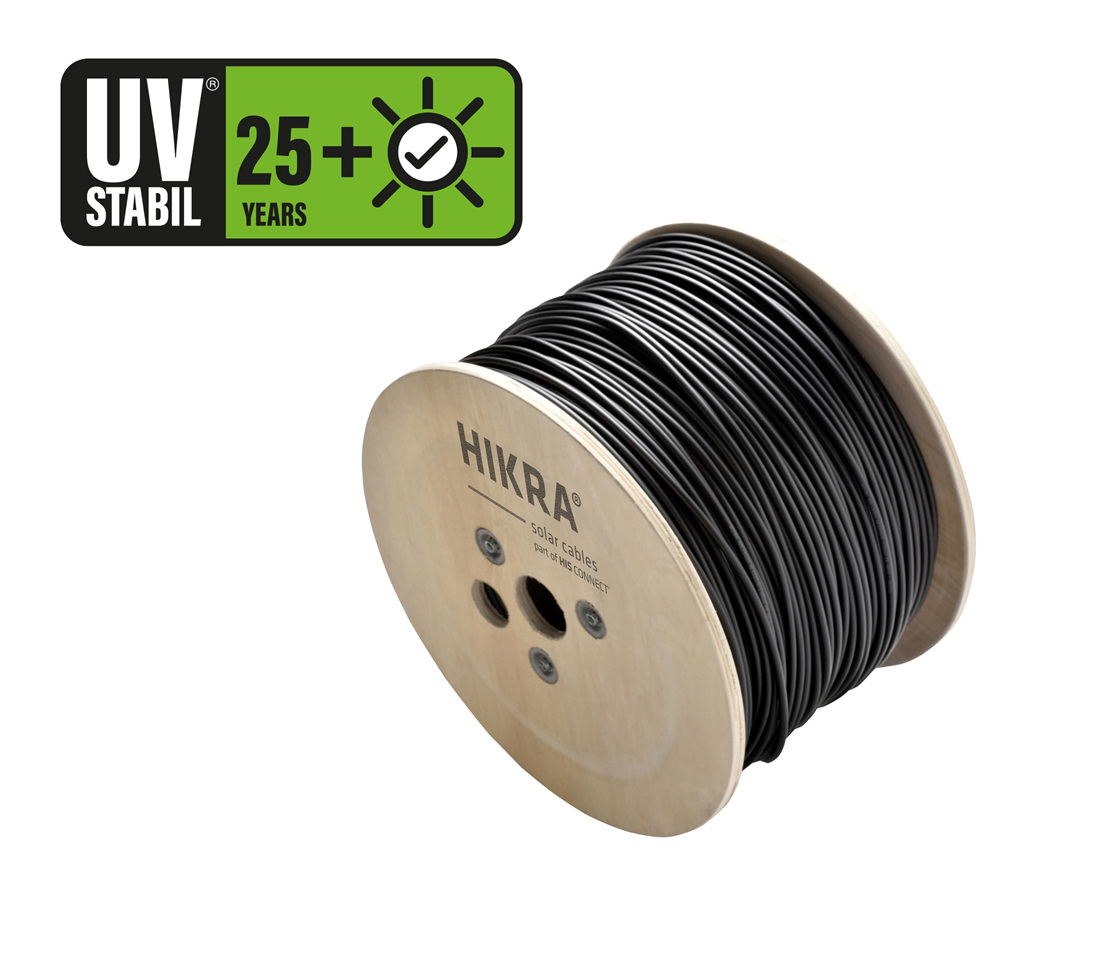

Solar Cable Plica SOL 6 mm2
Discover the Plica Sol solar cable 6 mm2 - Your key to efficient energy transmission.
Secure your solar installations with the double-insulated Plica Sol solar cable 6 mm2, ideal for optimal energy transmission. With a length of 500 m and a voltage resistance of up to 1500 V, this high-quality solar cable offers maximum safety and efficiency for your solar projects. Perfectly suited for use in photovoltaic systems, the Plica Sol solar cable ensures lasting performance and resilience under all conditions. Invest in reliability and maximize your energy generation.
Meets standards: H1Z2Z2-K | EN 50618:2014
Conductor material
Copper
Conductor surface
Tinned
Conductor category
Class 5 = flexible
Number of strands per conductor
78
Conductor resistance at 20 °C
3.39 Ohm/km
Material core insulation
Polyolefin
Specification core insulation
Other
Core identification according to HD 308 S2
No
Core identification
Other
With protective conductor
No
Drain wire
No
Suspension element
Other
Material outer sheath
Polyolefin
Specification material outer sheath
Other
Screen
No
Cable geometry
Round
Protective barrier
Other
Flame retardant according to IEC 60332-1-2
Yes
Low smoke according to EN IEC 61034-2
Yes
Oil resistant according to EN IEC 60811-404
Yes
Low temperature resistant according to EN 60811-504+505+506
Yes
Nominal voltage U0
1500 V
Nominal voltage U
1500 V
Shape of conductor
Round
Max. conductor temperature
120 °C
Weight
73 kg/km
2 Artikel
Reset filters
Filter
Item
AWG size
Nominal cross section conductor (AWG) kcmil
Nominal cross section conductor mm²
Strand diameter mm
Number of cores
Colour outer sheath
Outer diameter approx. mm
Availability
SU
Price / SUexcl. VAT
- Item 601534000AWG size 10Nominal cross section conductor (AWG)
kcmilNominal cross section conductor
mm² 6Strand diameter
mmNumber of cores 1Colour outer sheath BlackOuter diameter approx.
mm 6AvailabilitySU 500 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 601534001AWG size 10Nominal cross section conductor (AWG)
kcmilNominal cross section conductor
mm² 6Strand diameter
mmNumber of cores 1Colour outer sheath RedOuter diameter approx.
mm 6AvailabilitySU 500 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
Were you unable to find what you were looking for? We will gladly try and get the product you are looking for for you.
To the procurement serviceAccessories
