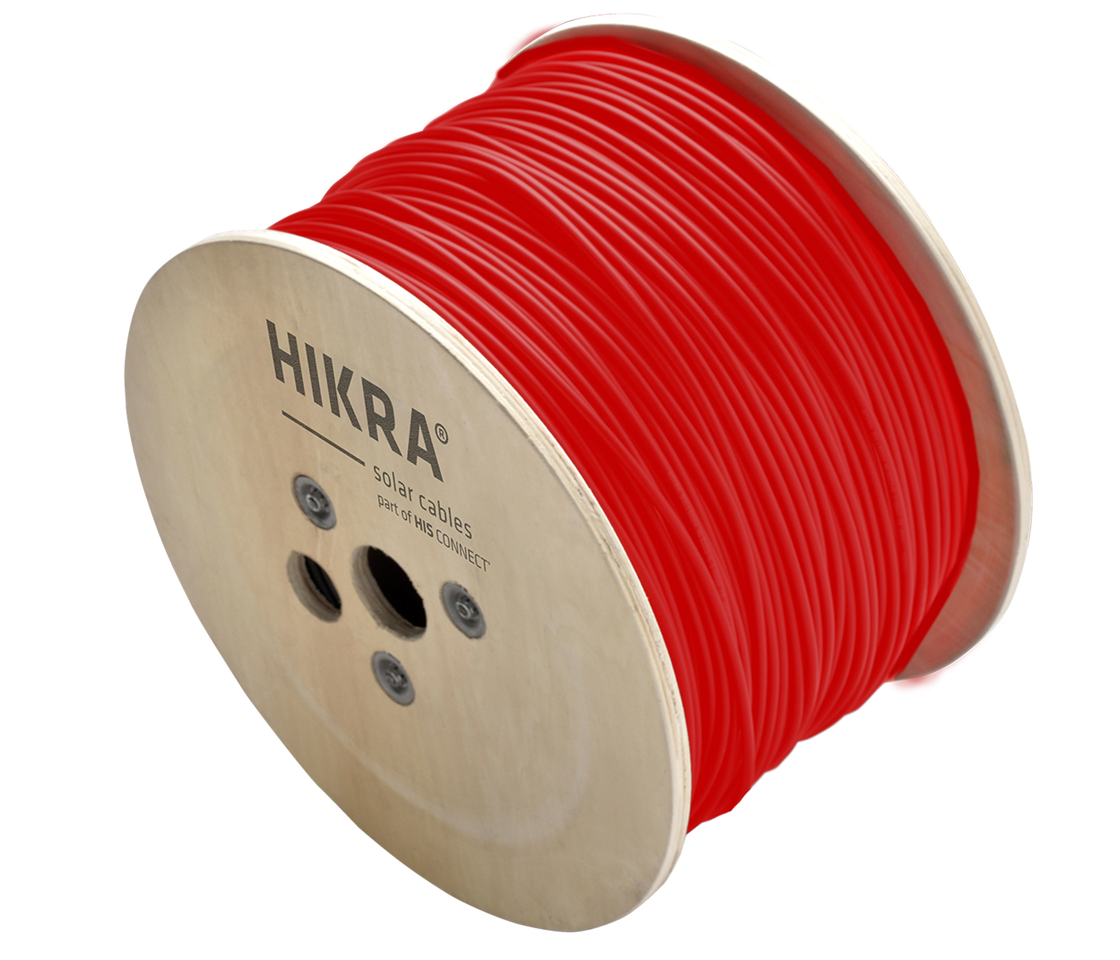

Solar cable spool with 500m Plica SOL 6mm red H1Z2Z2-K

Discover the Plica Sol solar cable 6 mm2 - Your key to efficient energy transmission.
Secure your solar installations with the double-insulated Plica Sol solar cable 6 mm2, ideal for optimal energy transmission. With a length of 500 m and a voltage resistance of up to 1500 V, this high-quality solar cable offers maximum safety and efficiency for your solar projects. Perfectly suited for use in photovoltaic systems, the Plica Sol solar cable ensures lasting performance and resilience under all conditions. Invest in reliability and maximize your energy generation.
Meets standards: H1Z2Z2-K | EN 50618:2014

Conductor material

Copper

Conductor surface

Tinned

Conductor category

Class 5 = flexible

Number of strands per conductor

Conductor resistance at 20 °C

3.39 Ohm/km

Material core insulation

Polyolefin

Specification core insulation

Other

Core identification according to HD 308 S2

Core identification

Other

With protective conductor

Drain wire

Material outer sheath

Polyolefin

Screen

Flame retardant according to IEC 60332-1-2

Yes

Low smoke according to EN IEC 61034-2

Yes

Oil resistant according to EN IEC 60811-404

Yes

Low temperature resistant according to EN 60811-504+505+506

Nominal voltage U

1500 V

Shape of conductor

Round

Max. conductor temperature

120 °C

1 Artikel

Item

AWG size

Nominal cross section conductor (AWG) kcmil

Nominal cross section conductor mm²

Strand diameter mm

Number of cores

Colour outer sheath

Outer diameter approx. mm

Availability

Price / SU in CHF excl. VAT

Item 601534001

AWG size 10

Nominal cross section conductor (AWG)
kcmil

Nominal cross section conductor
mm² 6

Strand diameter
mm

Number of cores 1

Colour outer sheath Red

Outer diameter approx.
mm 6

Availability

SU 500 m

Price / SU in CHF excl. VAT

Add item to the shopping cart

This item is available in 1 other versions.
