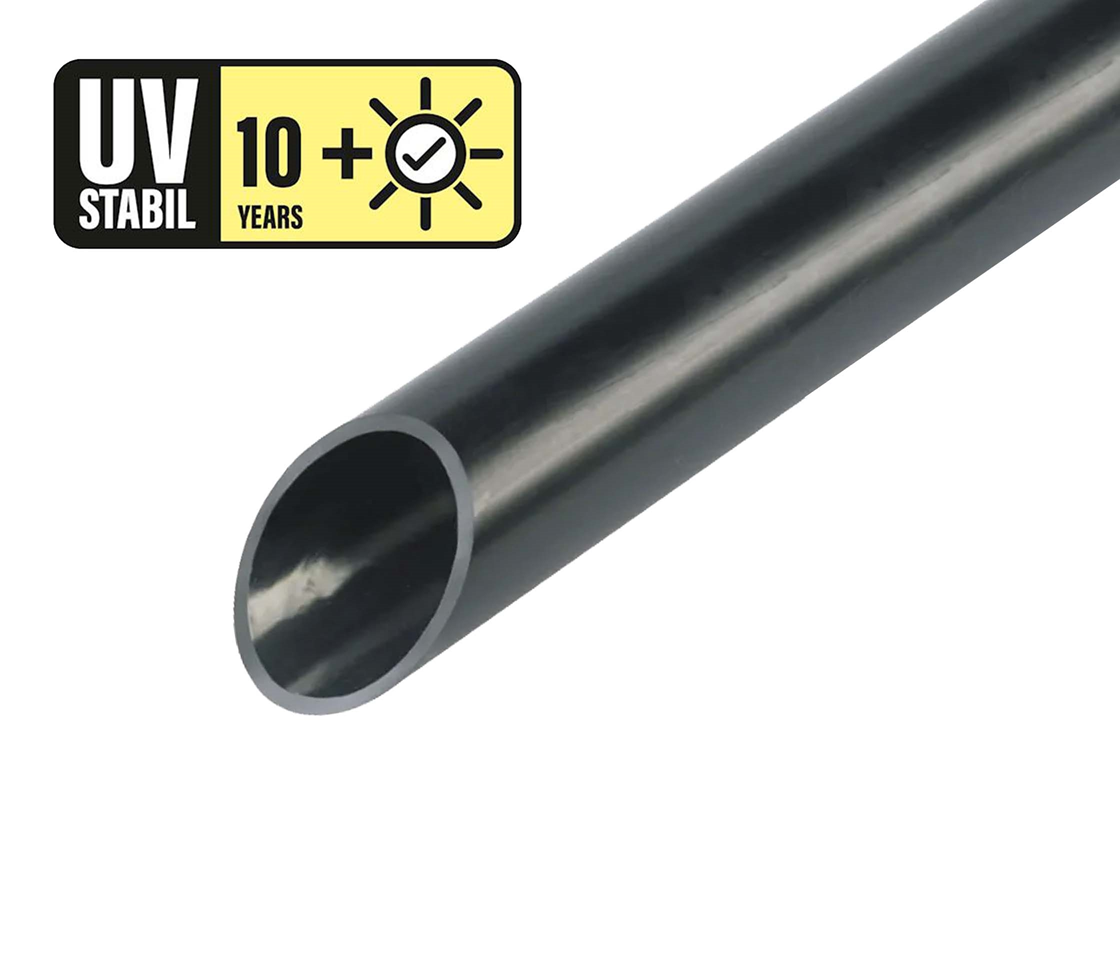

Plastic pipe PLICA KRH-UV Rapid black
FPKu-ES-F-UV black is a heavy plastic rod pipe made of modified PVC, in black (RAL 9005), non-flame spreading, UV-stabilised, in rods of 3m, with a socket moulded on one side. This plastic rod pipe is used for surface installation outdoors and in industrial plants. The advantages are the heavy pressure resistance and the corrosion resistance against acids and alkalis. UV-stable for up to 10 years. VDE 0605 DIN EN 61386-21 Minimum compressive strength: 1250N/5cm.
Material
Polyvinyl chloride (PVC)
Halogen free
No
Fire retardant version
Yes
Bending strength
Rigid
With sleeve
No
Compressive strength class
Heavy (class 4)
Impact strength
Medium (class 3)
Flush-mounted installation
No
Surface mounting
No
Suitable for installation on wood
Yes
Suitable for hollow wall installation
Yes
Suitable for concrete installation
Yes
Machine and systems installation
Yes
Suitable for subsurface installation (screed)
Yes
Outdoor installation
Yes
Suitable for underground installation
Yes
Operating temperature
-25...+60 °C
High conducting inner coating
Yes
With meter indication
No
TYPE / item name
PLICA-KRH-UV-RAPID
standard
UV-resistant
Yes
5 Artikel
Reset filters
Filter
Item
Inner diameter mm
Outer diameter mm
Colour
Thread
Position milling mm
length mm
bend radius
Availability
SU
Price / SUexcl. VAT
- Item 124011020Inner diameter
mm 16.6Outer diameter
mm 20Colour BlackThreadPosition milling
mmlength
mmbend radiusAvailabilitySU 57 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 124011025Inner diameter
mm 21.2Outer diameter
mm 25Colour BlackThreadPosition milling
mmlength
mmbend radiusAvailabilitySU 57 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 124011032Inner diameter
mm 27.9Outer diameter
mm 32Colour BlackThreadPosition milling
mmlength
mmbend radiusAvailabilitySU 21 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 124011040Inner diameter
mm 35.3Outer diameter
mm 40Colour BlackThreadPosition milling
mmlength
mmbend radiusAvailabilitySU 21 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 124011050Inner diameter
mm 45.4Outer diameter
mm 50Colour BlackThreadPosition milling
mmlength
mmbend radiusAvailabilitySU 21 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
