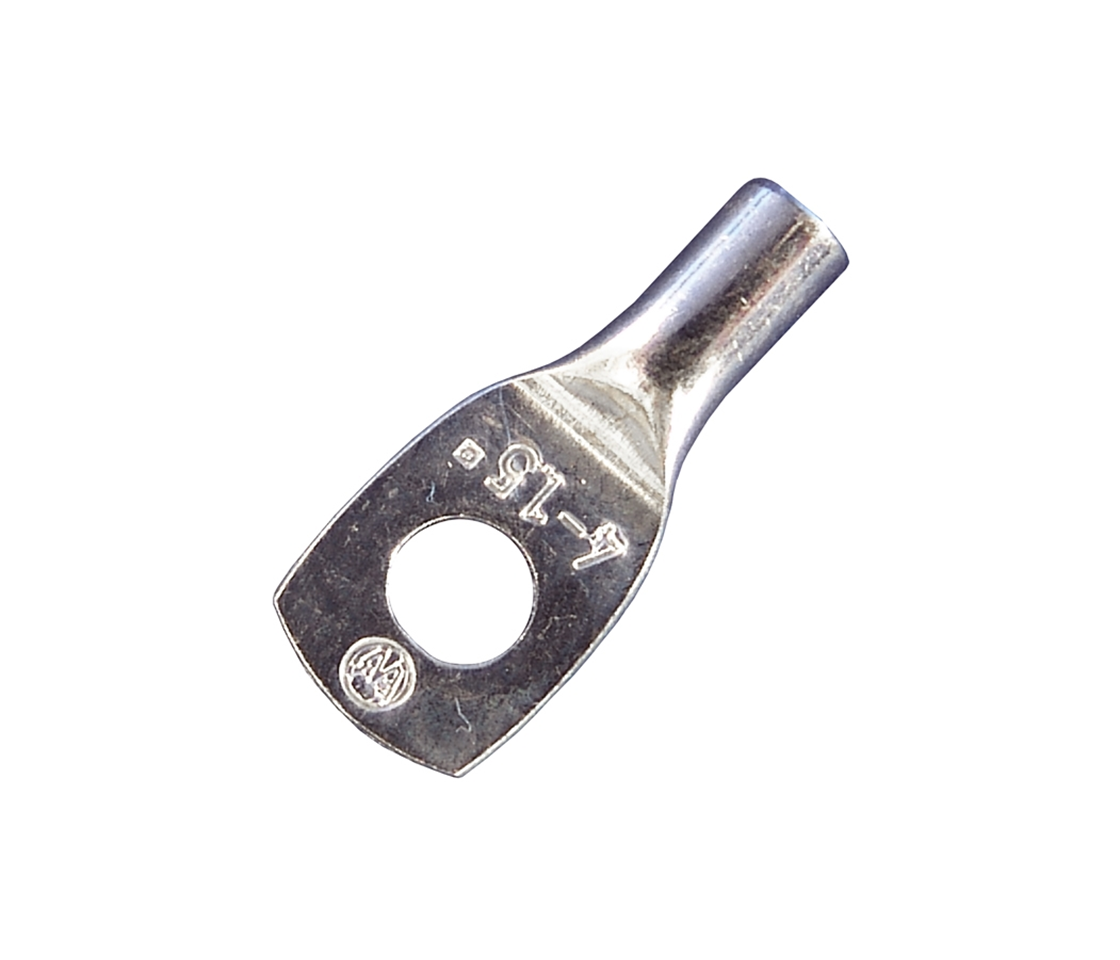

Material Cu-ETP in accordance with DIN EN 13600.
Material Cu-ETP in accordance with DIN EN 13600.
Connecting angle
45°
Flange shape
Ring shape
Slender flange model
Yes
Insulated
No
Colour insulation
Other
With sight-hole
Yes
Material
Copper
Surface protection
Other
Number of mounting holes
1
series
RKS-STANDARD-1
Isolated
No
13 Artikel
Reset filters
Filter
Item
Bolt dimension (metric)
Nominal cross section mm²
Length A
Width B
total length
length 2
length 3
width
height
Weight
Type
number of poles
colour
Availability
SU
Price / SUexcl. VAT
- Item 614100020Bolt dimension (metric) 4Nominal cross section
mm² 0.75Length A 14Width B 8.5total length 14length 2length 3width 8.5heightWeight 0.09Typenumber of polescolourAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 614100060Bolt dimension (metric) 3Nominal cross section
mm² 1.5Length A 14Width B 6.5total length 14length 2length 3width 6.5heightWeight 13Typenumber of polescolourAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 614100100Bolt dimension (metric) 5Nominal cross section
mm² 1.5Length A 16Width B 10total length 16length 2length 3width 10heightWeight 0.15Typenumber of polescolourAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 614100910Bolt dimension (metric) 4Nominal cross section
mm² 2.5Length A 15Width B 8.5total length 15length 2length 3width 8.5heightWeight 0.16Typenumber of polescolourAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 614100930Bolt dimension (metric) 5Nominal cross section
mm² 2.5Length A 16Width B 10total length 16length 2length 3width 10heightWeight 0.18Typenumber of polescolourAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 614100950Bolt dimension (metric) 6Nominal cross section
mm² 2.5Length A 18Width B 11total length 18length 2length 3width 11heightWeight 0.2Typenumber of polescolourAvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 614100970Bolt dimension (metric) 8Nominal cross section
mm² 2.5Length A 20Width B 13total length 20length 2length 3width 13heightWeightTypenumber of polescolourAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 614101580Bolt dimension (metric) 4Nominal cross section
mm² 4Length A 17Width B 8.5total length 17length 2length 3width 8.5heightWeightTypenumber of polescolourAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 614101620Bolt dimension (metric) 6Nominal cross section
mm² 4Length A 20Width B 11total length 20length 2length 3width 11heightWeightTypenumber of polescolourAvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 614101640Bolt dimension (metric) 8Nominal cross section
mm² 4Length A 22Width B 14total length 22length 2length 3width 14heightWeightTypenumber of polescolourAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 614101890Bolt dimension (metric) 4Nominal cross section
mm² 6Length A 17.5Width B 8.5total length 17.5length 2length 3width 8.5heightWeightTypenumber of polescolourAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 614101910Bolt dimension (metric) 6Nominal cross section
mm² 6Length A 19Width B 10total length 19length 2length 3width 10heightWeightTypenumber of polescolourAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 614101880Bolt dimension (metric) 10Nominal cross section
mm² 6Length A 25.5Width B 15total length 25.5length 2length 3width 15heightWeightTypenumber of polescolourAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
