PLICALU GME - Durable Steel Pipe for Versatile Installation Applications

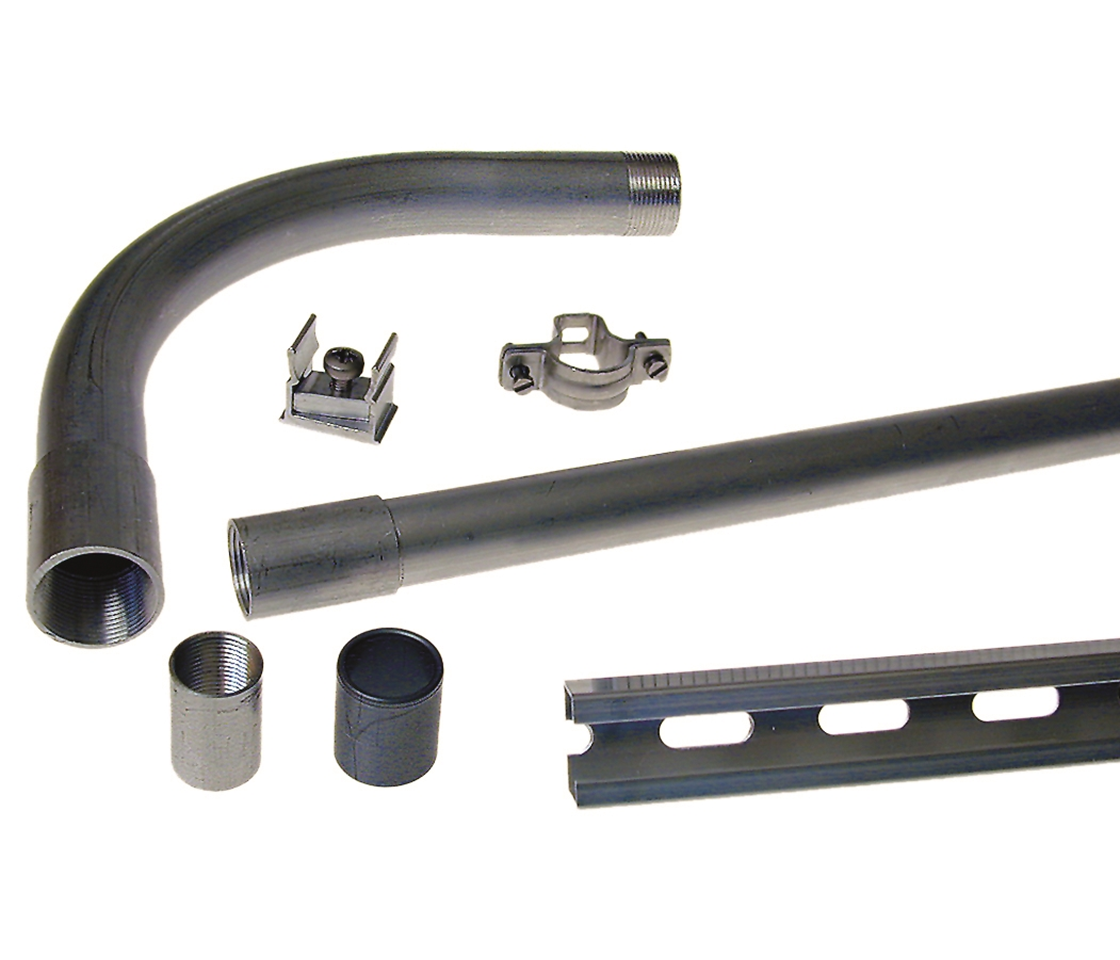

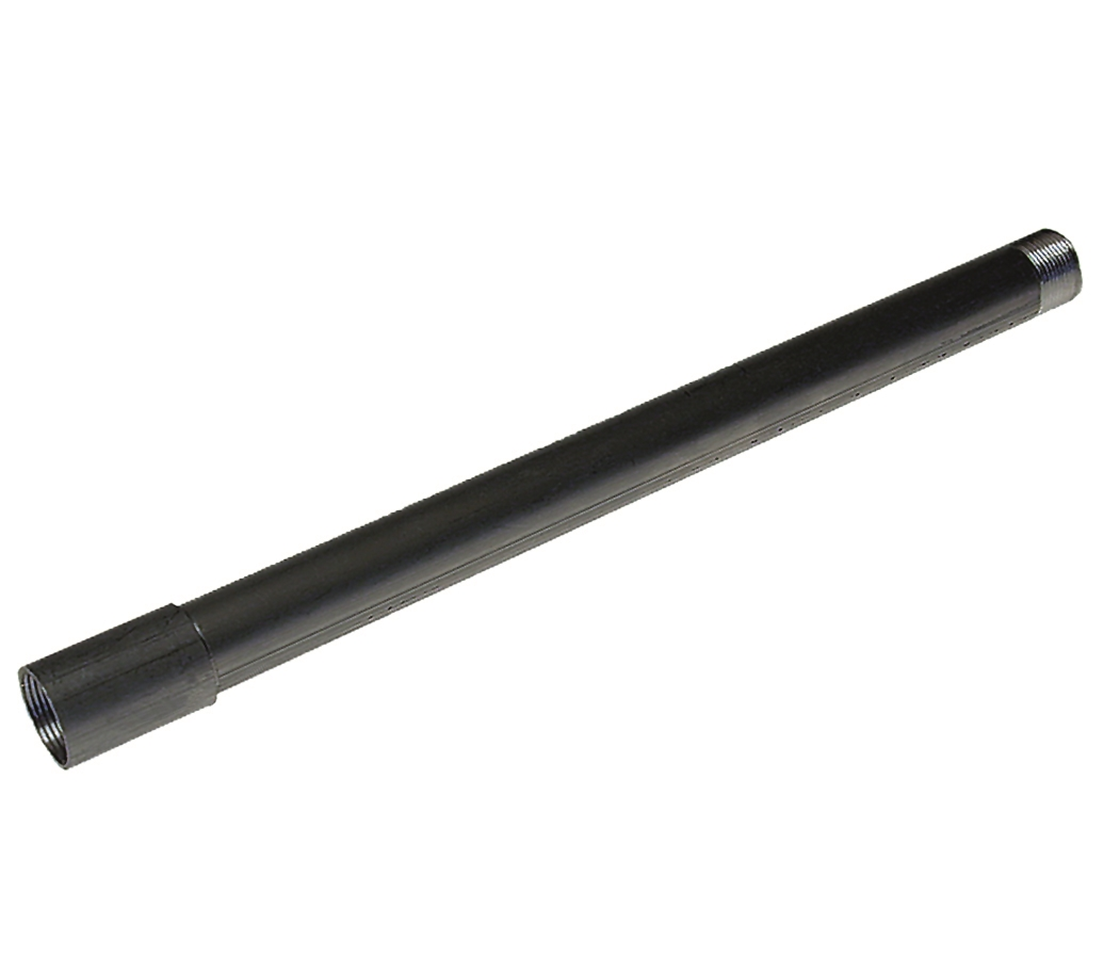

Discover the PLICALU GME, a convincing installation pipe made of high-quality, rolled steel strip with a screwed-on sleeve. Also available as a plug-in pipe, it offers excellent mechanical properties for various installation needs. Available in 3 m rods and classified in the fire behavior group RF1. plica stands for quality and versatility.
Material
Steel
Material quality
Steel (strip steel rolled)
Surface protection
Other
Quality of surface coating
Other
Surface polished
Yes
Surface brushed
No
Model
Rigid
Connection 1
Internal thread metric
Connection 2
External thread metric
Colour
Zinc
Flush-mounted installation
Yes
Surface mounting
No
Suitable for concrete installation
Yes
Machine and systems installation
Yes
Suitable for subsurface installation (bitumen, hot asphalt)
Yes
Suitable for subsurface installation (screed)
Yes
Outdoor installation
Yes
Installation on wood
Yes
Suitable for hollow wall installation
Yes
Suitable for underground installation
Yes
Compressive strength class
Heavy (class 4)
Operating temperature
-45...+250 °C
series
ERZ(STAPA)
Halogen free
No
standard
