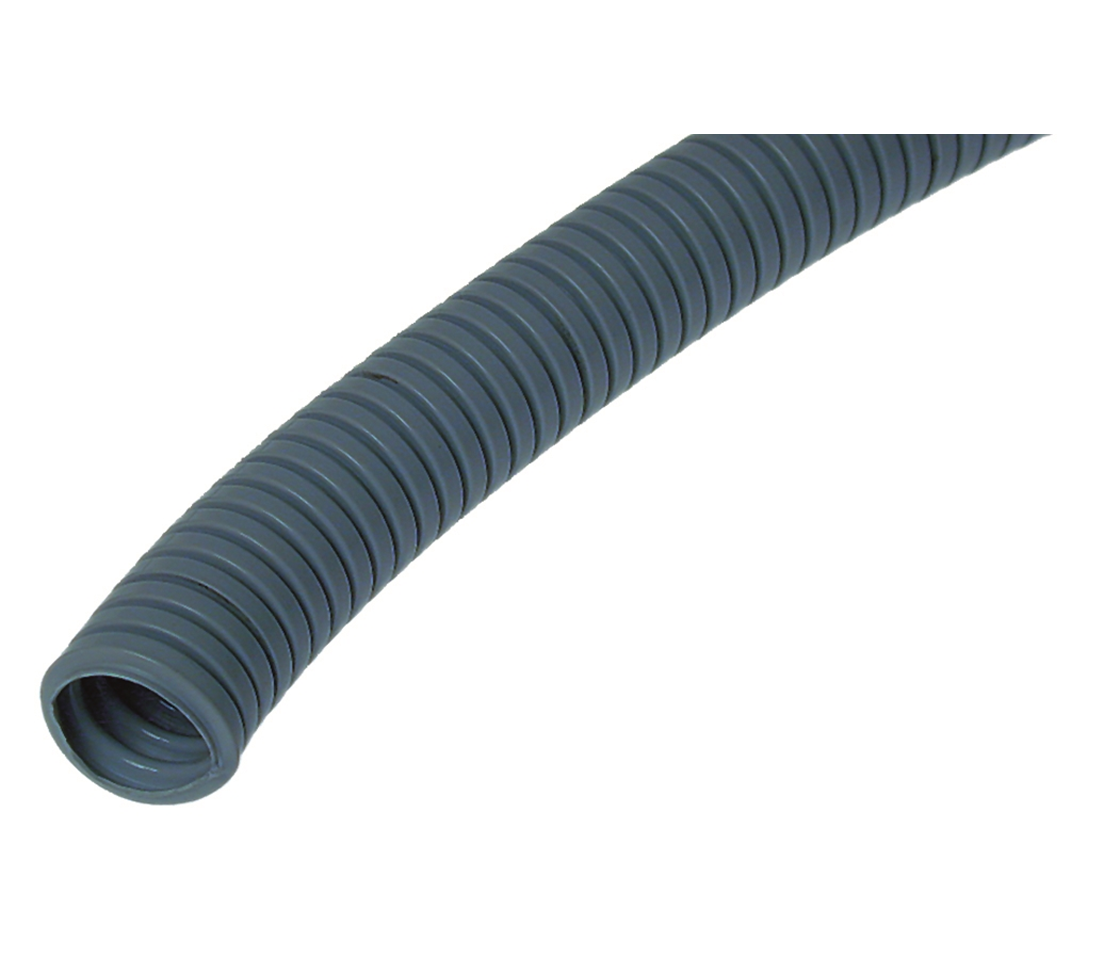

PLICA-HALOFLEX
Tube halogen-free, special plastic material. Very flexible. To be used for halogenfree installations.
Material
Other
Halogen free
Yes
Fire retardant version
Yes
Bending strength
Flexible
With sleeve
Yes
Compressive strength class
Heavy (class 4)
Impact strength
Heavy (class 4)
Flush-mounted installation
Yes
Surface mounting
Yes
Suitable for installation on wood
Yes
Suitable for hollow wall installation
Yes
Suitable for concrete installation
Yes
Machine and systems installation
Yes
Suitable for subsurface installation (screed)
Yes
Outdoor installation
Yes
Suitable for underground installation
Yes
Operating temperature
-5...+105 °C
High conducting inner coating
Yes
With meter indication
No
TYPE / item name
PLICA-HALOFLEX
standard
UV-resistant
No
5 Artikel
Reset filters
Filter
Item
Inner diameter mm
Outer diameter mm
Colour
Thread
Position milling mm
length mm
bend radius
Availability
SU
Price / SUexcl. VAT
- Item 148005016Inner diameter
mm 11.5Outer diameter
mm 16Colour GreyThreadPosition milling
mmlength
mmbend radiusAvailabilitySU 100 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 148005025Inner diameter
mm 18.3Outer diameter
mm 25Colour GreyThreadPosition milling
mmlength
mmbend radiusAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 148002532Inner diameter
mm 24.3Outer diameter
mm 32Colour GreyThreadPosition milling
mmlength
mmbend radiusAvailabilitySU 50 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 148002540Inner diameter
mm 29.4Outer diameter
mm 40Colour GreyThreadPosition milling
mmlength
mmbend radiusAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 148002563Inner diameter
mm 47.4Outer diameter
mm 63Colour GreyThreadPosition milling
mmlength
mmbend radiusAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
