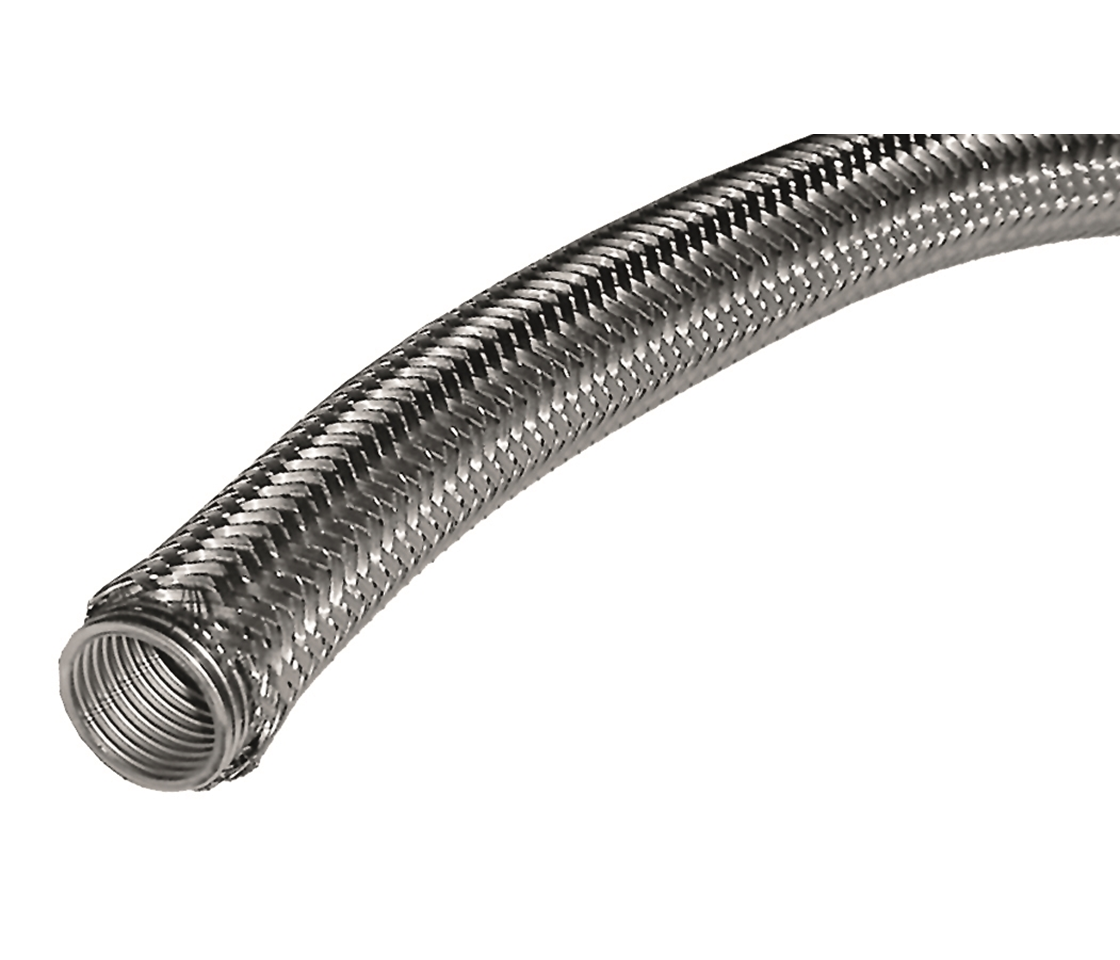

Installation tube, braided KSR GS INOX V2A
High quality bendable installation tube in stainless steel INOX V2A with braid. A flexible and quick option for rigid piping in difficult locations. Suitable for the installation in every area. Execution mat glowed/bated with braid in stainless steel INOX V2A. Larger dimensions and fittings on demand. Reaction to fire group RF1.
Material
Stainless steel
Sheathing material 1st coating
Stainless steel wire
Compressive strength
1250 N
Operating temperature
-270…+700 °C
Flame accelerating
No
Suitable for EX-applications
No
Bending strength
Flexible
Approved according to FI
No
With approval according to UL
No
UV-resistant
No
12 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Outer diameter mm
Inner diameter mm
Wall thickness mm
Bending radius, static mm
Colour
Availability
SU
Price / SUexcl. VAT
- Item 136910006Nominal diameter
mm 6Outer diameter
mm 11.5Inner diameter
mm 6Wall thickness
mmBending radius, static
mmColour Stainless steelAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 136910010Nominal diameter
mm 10Outer diameter
mm 15.5Inner diameter
mm 10Wall thickness
mmBending radius, static
mmColour Stainless steelAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 136910012Nominal diameter
mm 12Outer diameter
mm 19.9Inner diameter
mm 12Wall thickness
mmBending radius, static
mmColour Stainless steelAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 136910016Nominal diameter
mm 16Outer diameter
mm 23Inner diameter
mm 16Wall thickness
mmBending radius, static
mmColour Stainless steelAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 136910020Nominal diameter
mm 20Outer diameter
mm 28.5Inner diameter
mm 20Wall thickness
mmBending radius, static
mmColour Stainless steelAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 136910025Nominal diameter
mm 25Outer diameter
mm 33Inner diameter
mm 25Wall thickness
mmBending radius, static
mmColour Stainless steelAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 136910032Nominal diameter
mm 32Outer diameter
mm 43Inner diameter
mm 32Wall thickness
mmBending radius, static
mmColour Stainless steelAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 136910040Nominal diameter
mm 40Outer diameter
mm 41Inner diameter
mm 40Wall thickness
mmBending radius, static
mmColour Stainless steelAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 136910050Nominal diameter
mm 50Outer diameter
mm 65Inner diameter
mm 50Wall thickness
mmBending radius, static
mmColour Stainless steelAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 136910065Nominal diameter
mm 65Outer diameter
mm 81Inner diameter
mm 65Wall thickness
mmBending radius, static
mmColour Stainless steelAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 136910080Nominal diameter
mm 80Outer diameter
mm 97Inner diameter
mm 80Wall thickness
mmBending radius, static
mmColour Stainless steelAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 136910100Nominal diameter
mm 100Outer diameter
mm 119Inner diameter
mm 100Wall thickness
mmBending radius, static
mmColour Stainless steelAvailabilitySU 25 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
