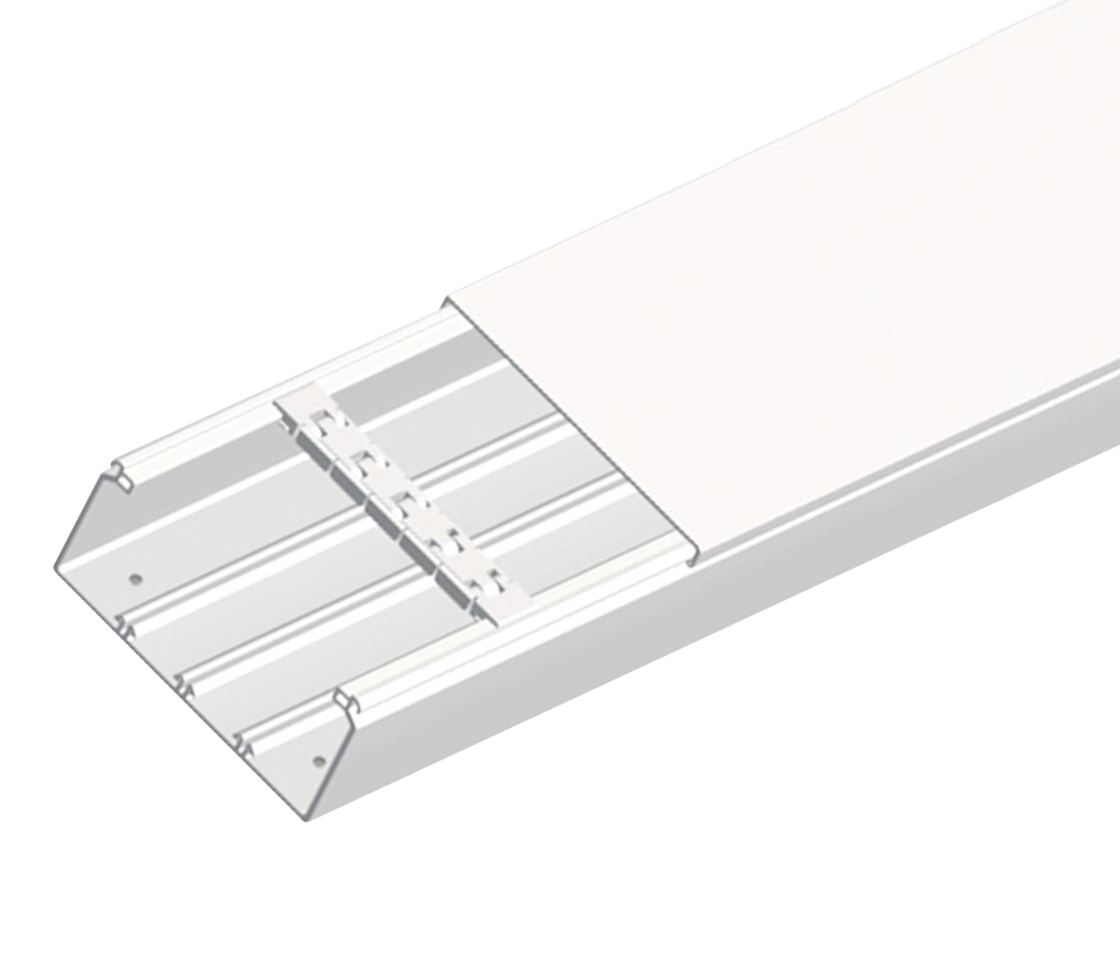

Installation trunking 3m, UNEX U23X pure white
External lid, for distribution, with possibility to mount switches and sockets. Single cover with possibility to make additional compartments by means of a divider. Suitable for outdoor use. Perforated base every 250mm. 1 cable retainer included every 0,5m. Length: 3m. White. Safety: electrical (insulating material, IP4X mounted on wall); mechanical (protection against impacts IK08); and in front of fire (glow-wire test at 960°C; non-flame propagator). Easy mounting: the cover is pressure mounted (no need to slide it). The cable retainer retains the cables and allows for independent access to each circuit. Homogeneity of colours between the trunking and the fittings. Can be painted. Removable divider, pressure mounted.
Length
3000 mm
Material
Plastic
Material quality
Polyvinyl chloride (PVC)
Halogen free
No
Anti-bacterial treatment
No
Surface protection
Other
Suitable for circuit integrity
No
Transparent
No
Number of permanent partitions
1
Number of plug-in partitions
1
Type of fastening
Bottom perforation
Cover model
Loose
With cable fixing clip
Yes
With protective foil
Yes
With duct connector
No
Delivery on roll
No
Pre-stamping
Yes
Degree of protection (IP)
IP40
Impact strength
IK08
Operating temperature
-25 °C
12 Artikel
Reset filters
Filter
Item
Height mm
Width mm
Useful cross section mm²
Colour
series
Availability
SU
Price / SUexcl. VAT
- Item 107600524Height
mm 30Width
mm 40Useful cross section
mm² 670Colour Whiteseries 73010-2AvailabilitySU 48 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600525Height
mm 30Width
mm 60Useful cross section
mm² 980Colour Whiteseries 73061-2AvailabilitySU 36 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600526Height
mm 40Width
mm 110Useful cross section
mm² 2780Colour Whiteseries 73073-2AvailabilitySU 24 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600527Height
mm 40Width
mm 40Useful cross section
mm² 1020Colour Whiteseries 73020-2AvailabilitySU 48 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600528Height
mm 40Width
mm 60Useful cross section
mm² 1530Colour Whiteseries 73071-2AvailabilitySU 36 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600530Height
mm 40Width
mm 90Useful cross section
mm² 2315Colour Whiteseries 73072-2AvailabilitySU 24 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600532Height
mm 60Width
mm 110Useful cross section
mm² 4780Colour Whiteseries 73083-2AvailabilitySU 18 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600534Height
mm 60Width
mm 130Useful cross section
mm² 5700Colour Whiteseries 73084-2AvailabilitySU 12 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600535Height
mm 60Width
mm 150Useful cross section
mm² 6540Colour Whiteseries 73085-2AvailabilitySU 12 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600537Height
mm 60Width
mm 190Useful cross section
mm² 8205Colour Whiteseries 73086-2AvailabilitySU 12 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600538Height
mm 60Width
mm 230Useful cross section
mm² 9930Colour Whiteseries 73088-2AvailabilitySU 6 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600539Height
mm 60Width
mm 90Useful cross section
mm² 3930Colour Whiteseries 73082-2AvailabilitySU 24 mPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
