Seal ring PE

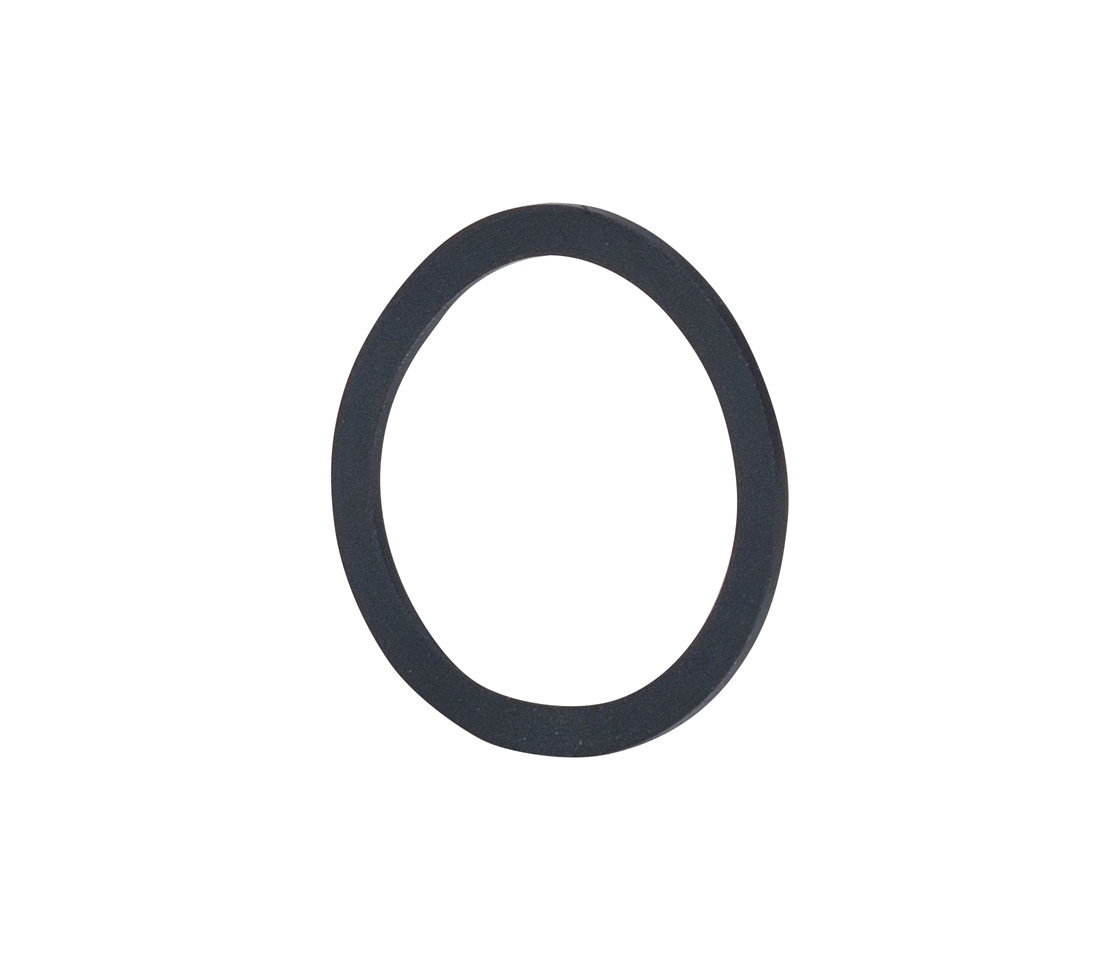

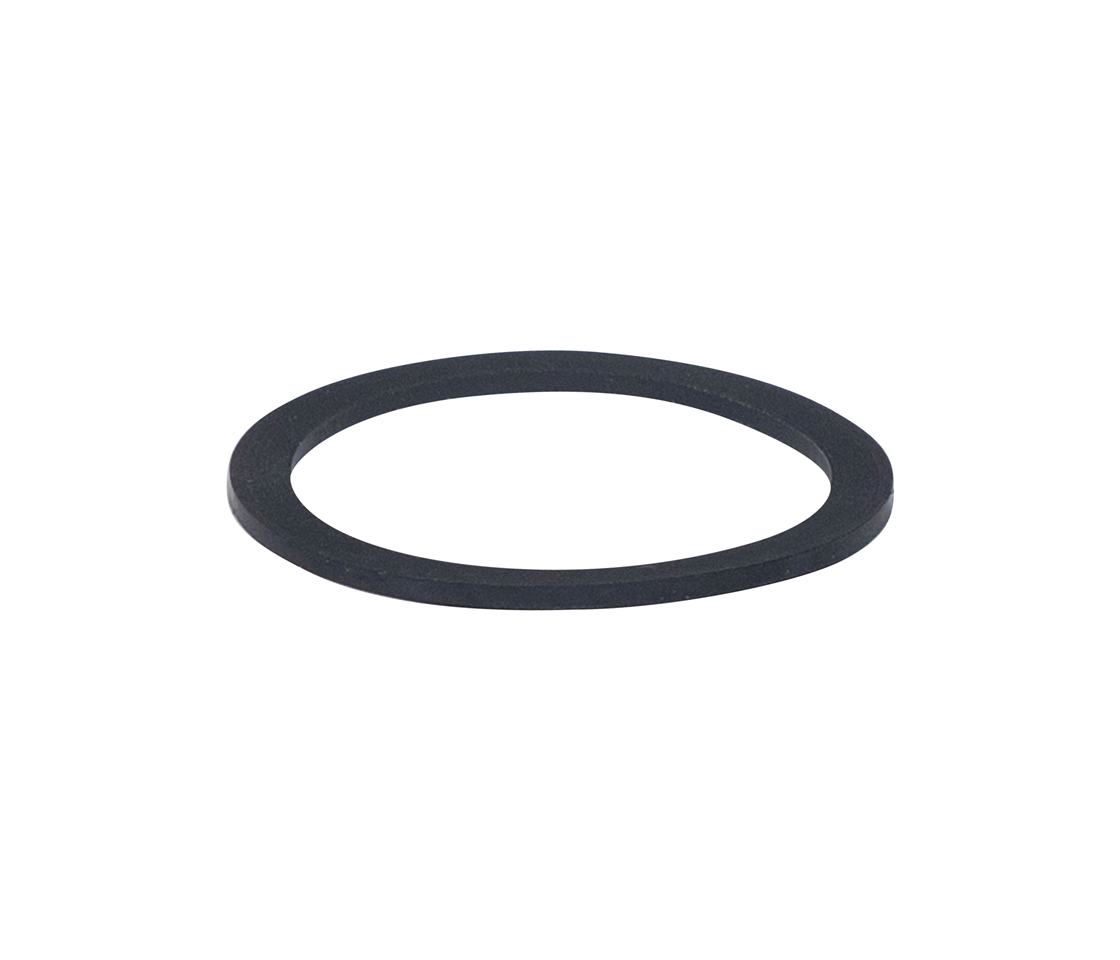

Discover the GEW-RI Connection Thread Sealing Ring in PG version by PLICA, an effective solution for your cable management needs. This sealing ring, made from rubber and nitrile rubber NBR, is resistant to oils, acids, and weak alkalis, making it ideal for use in demanding environments. It is available in various PG sizes and offers high temperature resistance from -40 to +100 °C. The GEW-RI sealing ring is halogen-free and UV-resistant, making it a reliable choice for your cable glands. Its black color and flat shape provide a discreet and effective seal. The sealing ring is not cuttable and does not provide EMV protection, which should be considered when selecting for specific applications.
Material
Rubber
Material quality
NBR (nitrile rubber)
series
O-FLACHRING-NBR(M)
colour
Cuttable
No
Halogen free
Yes
UV-resistant
Yes
temperature resistance
-40…+100
Other material
EMC protected
No
8 Artikel
Reset filters
Filter
Item
Outer diameter mm
Inner diameter mm
Thickness mm
Suitable for thread size (metric)
Suitable for thread size PG
Number of feedthroughs
clamping area
Availability
SU
Price / SUexcl. VAT
- Item 908115209Outer diameter
mm 20Inner diameter
mm 13.9Thickness
mmSuitable for thread size (metric) 16Suitable for thread size PG 9Number of feedthroughs 4clamping areaAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 908115211Outer diameter
mm 23Inner diameter
mm 17.1Thickness
mmSuitable for thread size (metric)Suitable for thread size PG 11Number of feedthroughs 4clamping areaAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 908115213Outer diameter
mm 25Inner diameter
mm 19Thickness
mmSuitable for thread size (metric)Suitable for thread size PG 13.5Number of feedthroughs 4clamping areaAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 908115216Outer diameter
mm 27Inner diameter
mm 21Thickness
mmSuitable for thread size (metric)Suitable for thread size PG 16Number of feedthroughs 4clamping areaAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 908115221Outer diameter
mm 34Inner diameter
mm 26.6Thickness
mmSuitable for thread size (metric)Suitable for thread size PG 21Number of feedthroughs 4clamping areaAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 908115229Outer diameter
mm 45Inner diameter
mm 35.2Thickness
mmSuitable for thread size (metric)Suitable for thread size PG 29Number of feedthroughs 4clamping areaAvailabilitySU 100 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 908115236Outer diameter
mm 56Inner diameter
mm 45.2Thickness
mmSuitable for thread size (metric)Suitable for thread size PG 36Number of feedthroughs 4clamping areaAvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 908115242Outer diameter
mm 67Inner diameter
mm 52.2Thickness
mmSuitable for thread size (metric)Suitable for thread size PG 42Number of feedthroughs 4clamping areaAvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
