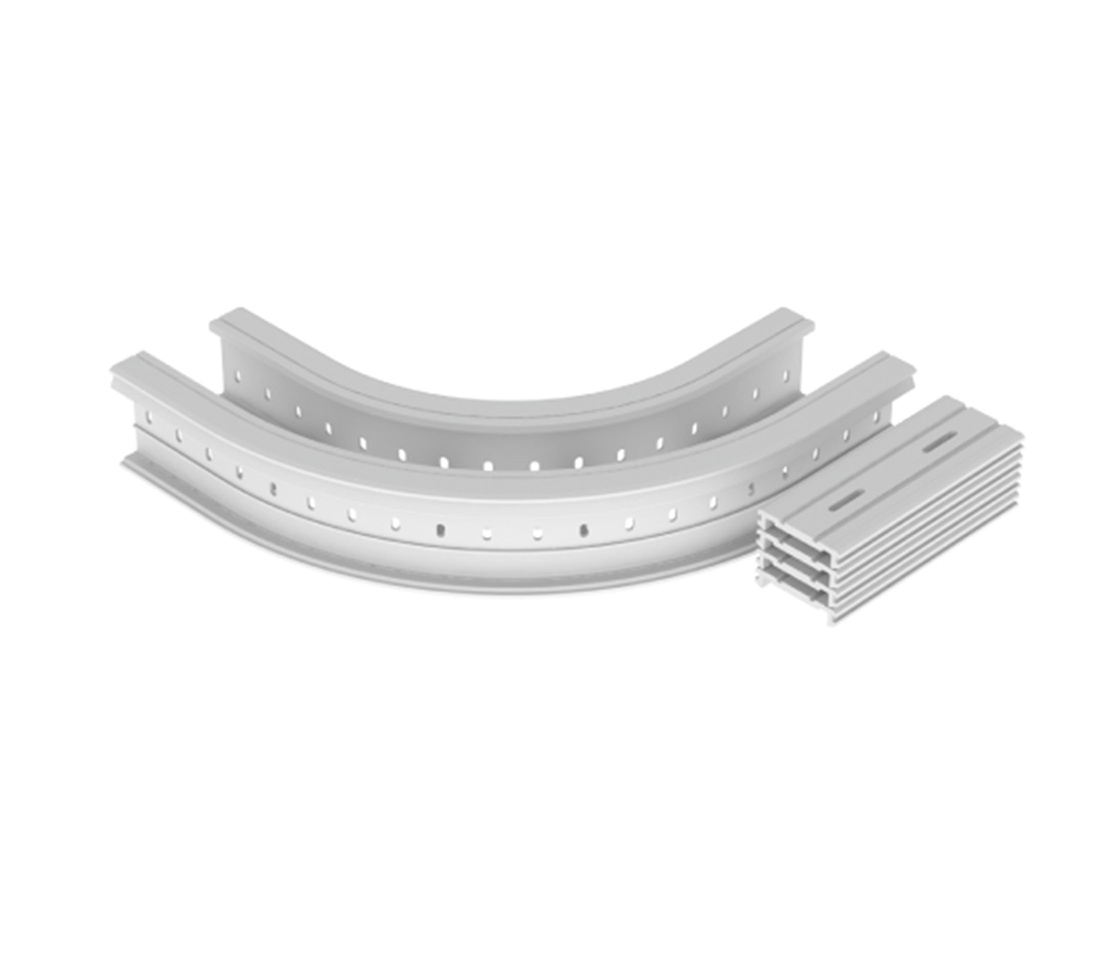

Flat bend 90°, U23X
Flat bend for making 90° turns. It is recommended to place beams under the bend. Radius of curvature of 300 mm. Joint connectors are included for easy installation. Insulating material. Color: Light gray RAL 7035
Change of direction
Horizontal
Type of side joist
Profile (open)
Side wall perforation
Yes
Type of rung
Perforated profile
Bend model
Smooth bend
Hinging
No
Model
Without connector
Inner radius
300 mm
Wide span model
No
Suitable for circuit integrity
No
Material
Plastic
Material quality
Polyvinyl chloride (PVC)
Surface protection
Other
Colour
Grey
RAL-number
7035
series
Flachbogen 90°, U23X
20 Artikel
Reset filters
Filter
Item
Angle
Cable ladder height mm
Cable ladder width mm
Availability
SU
Price / SUexcl. VAT
- Item 107600302Angle 90°Cable ladder height
mm 135Cable ladder width
mm 200AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600303Angle 90°Cable ladder height
mm 135Cable ladder width
mm 200AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600304Angle 90°Cable ladder height
mm 135Cable ladder width
mm 300AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600305Angle 90°Cable ladder height
mm 135Cable ladder width
mm 300AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600306Angle 90°Cable ladder height
mm 135Cable ladder width
mm 400AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600307Angle 90°Cable ladder height
mm 135Cable ladder width
mm 400AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600308Angle 90°Cable ladder height
mm 135Cable ladder width
mm 500AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600309Angle 90°Cable ladder height
mm 135Cable ladder width
mm 500AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600310Angle 90°Cable ladder height
mm 135Cable ladder width
mm 600AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600311Angle 90°Cable ladder height
mm 135Cable ladder width
mm 600AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600312Angle 90°Cable ladder height
mm 85Cable ladder width
mm 200AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600313Angle 90°Cable ladder height
mm 85Cable ladder width
mm 200AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600314Angle 90°Cable ladder height
mm 85Cable ladder width
mm 300AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600315Angle 90°Cable ladder height
mm 85Cable ladder width
mm 300AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600316Angle 90°Cable ladder height
mm 85Cable ladder width
mm 400AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600317Angle 90°Cable ladder height
mm 85Cable ladder width
mm 400AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600318Angle 90°Cable ladder height
mm 85Cable ladder width
mm 500AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600319Angle 90°Cable ladder height
mm 85Cable ladder width
mm 500AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600320Angle 90°Cable ladder height
mm 85Cable ladder width
mm 600AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 107600321Angle 90°Cable ladder height
mm 85Cable ladder width
mm 600AvailabilitySU 1 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
