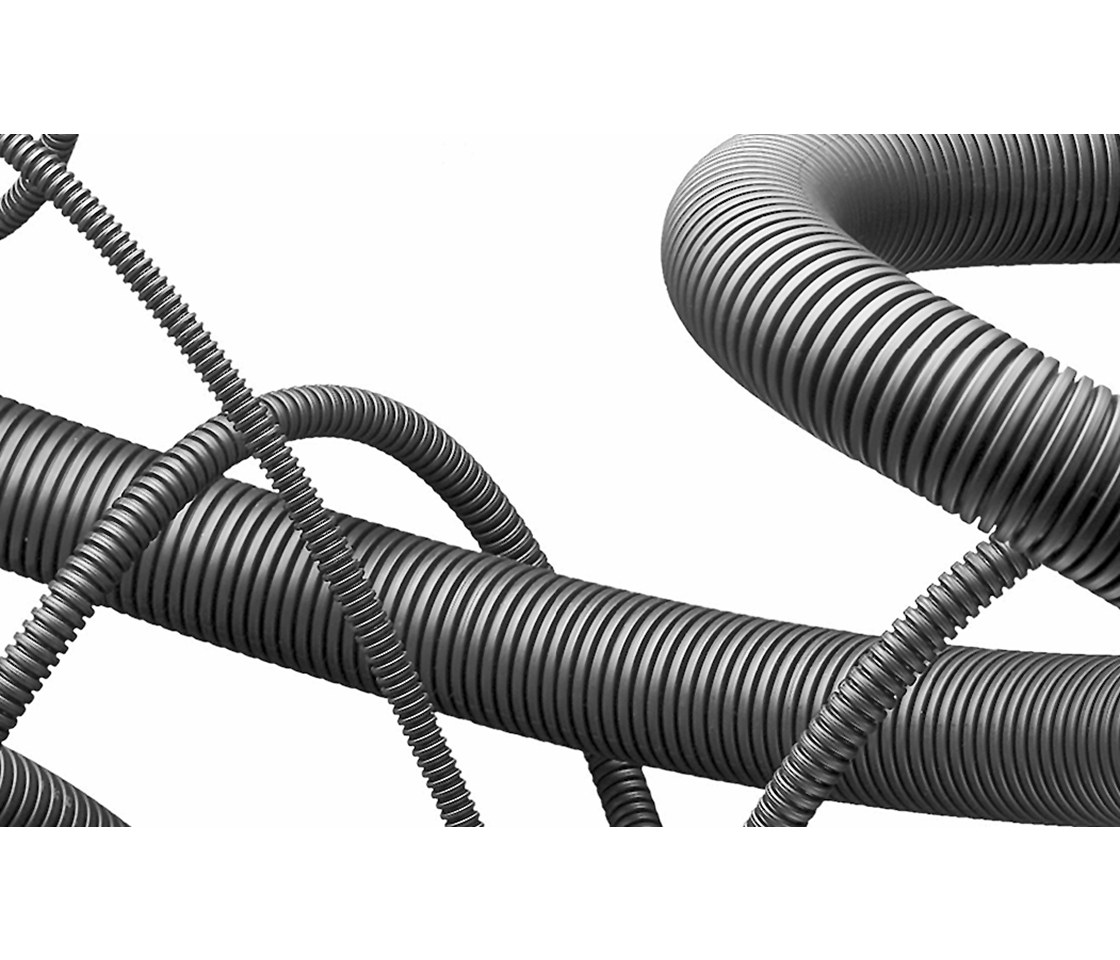

Plica FPPO Polypropylene Conduit – Versatile & Safe
The plica FPPO conduit made from specially formulated Polypropylene is perfect for light dynamic cable protection applications. The product is self-extinguishing, halogen-free, and cadmium-free, with excellent chemical resistance, making it highly versatile. Available in fine profile (F) and coarse profile (C), the FPPO conduit offers flexibility and reliability. It is UV-stable, with an operating temperature range of -40 to +105 °C, and meets the UL 94 V2 fire safety standard.
Material
Polypropylene (PP)
Sheathing material
Not sheathed
Lengthwise slotted
No
Closable (two-part)
No
Operating temperature
-40...+105 °C
Fire resistance according to UL94
V2
Flame accelerating
No
UV resistant
Yes
Oil resistant
No
Halogen free
Yes
Bending strength
Flexible
With draw wire
No
High conducting inner coating
No
Approved according to UR
No
Approved according to CSA
No
Approved according to DIN 5510
No
Approved according to VdTÜV/GGVSEB
No
Approved according to NF F 16-101
No
Approved according to LUL/British Standard
No
Approved according to Lloyd's Register TA
No
9 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Outer diameter mm
Inner diameter mm
Bending radius, static mm
Colour
Availability
SU
Price / SUexcl. VAT
- Item 880001074Nominal diameter
mm 7Outer diameter
mm 10Inner diameter
mm 6.6Bending radius, static
mm 15Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001075Nominal diameter
mm 10Outer diameter
mm 12.8Inner diameter
mm 9.8Bending radius, static
mm 20Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001076Nominal diameter
mm 12Outer diameter
mm 15.7Inner diameter
mm 12.3Bending radius, static
mm 25Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001077Nominal diameter
mm 17Outer diameter
mm 21.1Inner diameter
mm 16.6Bending radius, static
mm 30Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001078Nominal diameter
mm 23Outer diameter
mm 28.4Inner diameter
mm 23.1Bending radius, static
mm 36Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001079Nominal diameter
mm 29Outer diameter
mm 34.5Inner diameter
mm 26.9Bending radius, static
mm 45Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001080Nominal diameter
mm 36Outer diameter
mm 42.4Inner diameter
mm 36.5Bending radius, static
mm 60Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001081Nominal diameter
mm 48Outer diameter
mm 54.4Inner diameter
mm 47.5Bending radius, static
mm 70Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001072Nominal diameter
mm 70Outer diameter
mm 79.6Inner diameter
mm 67.2Bending radius, static
mm 135Colour BlackAvailabilitySU 1 RoPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
