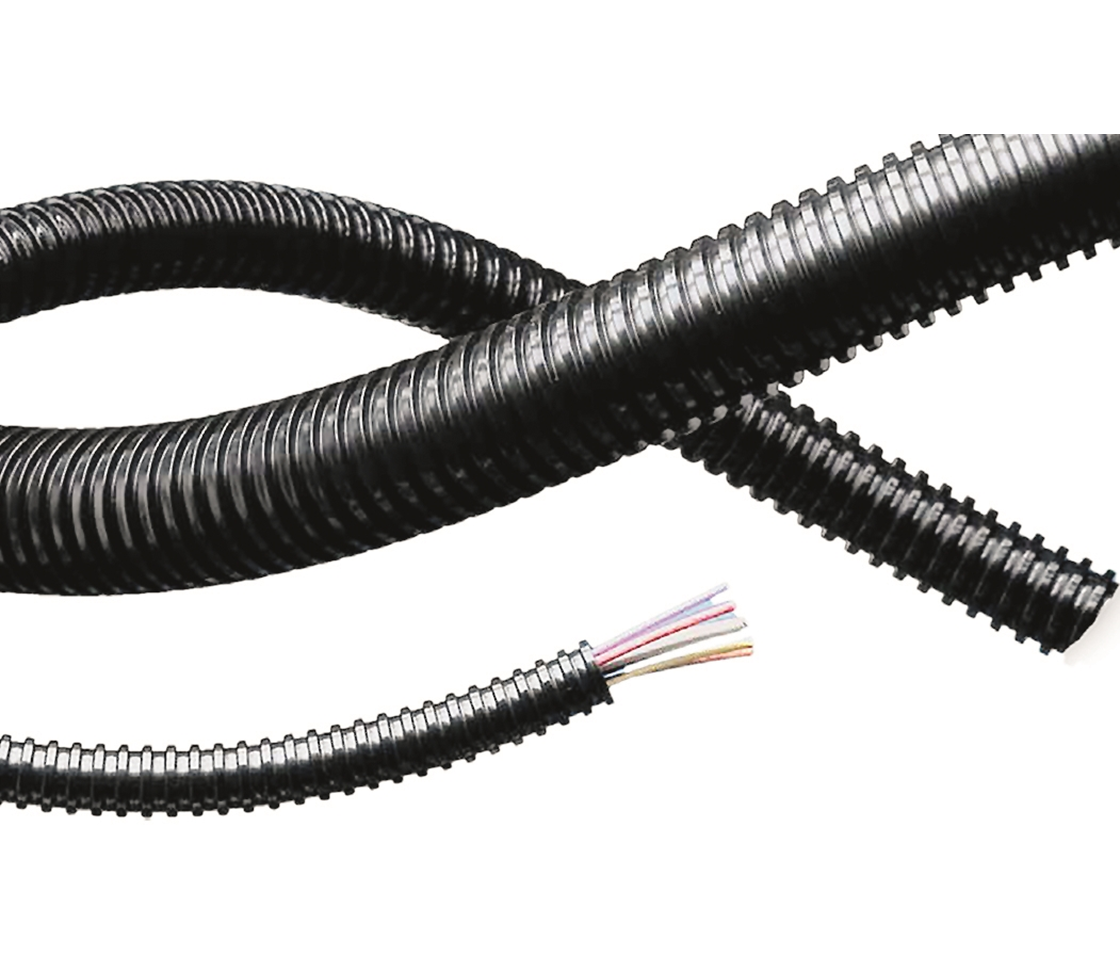

Plica FPASS Conduit with Softwave Profile – Protective & Flexible
The plica FPASS conduit features a special Softwave profile (S) that provides good dynamic flexibility even with a smooth inner surface. Perfect for applications with strong vibrations, it effectively prevents the chafing of cable and conductor insulations inside the conduit. Made from high-quality, specially formulated Polyamide 6, it is particularly suited for vehicle and equipment construction. It operates at temperatures from -45 to +120 °C, has a compressive strength of 320 N, and meets the UL 94 V2 fire safety standard.
Material
Polyamide 6
Sheathing material
Not sheathed
Lengthwise slotted
No
Closable (two-part)
No
Operating temperature
-45...+120 °C
Compressive strength
320 N
Fire resistance according to UL94
V2
Flame accelerating
No
UV resistant
Yes
Oil resistant
No
Halogen free
Yes
Bending strength
Flexible
With draw wire
No
High conducting inner coating
No
Approved according to UR
No
Approved according to CSA
No
Approved according to DIN 5510
No
Approved according to VdTÜV/GGVSEB
No
Approved according to NF F 16-101
No
Approved according to LUL/British Standard
No
Approved according to Lloyd's Register TA
No
