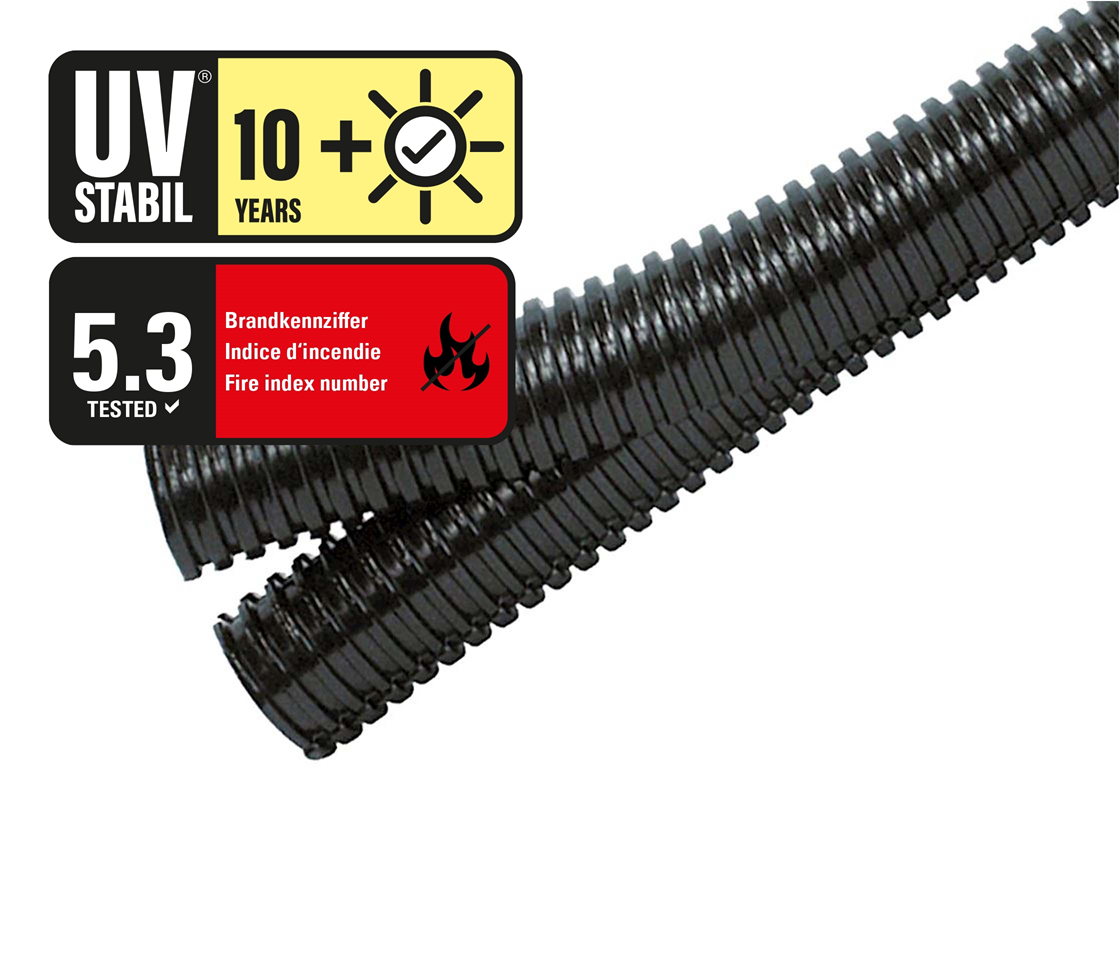

Corrugated conduit DUPLEX PA

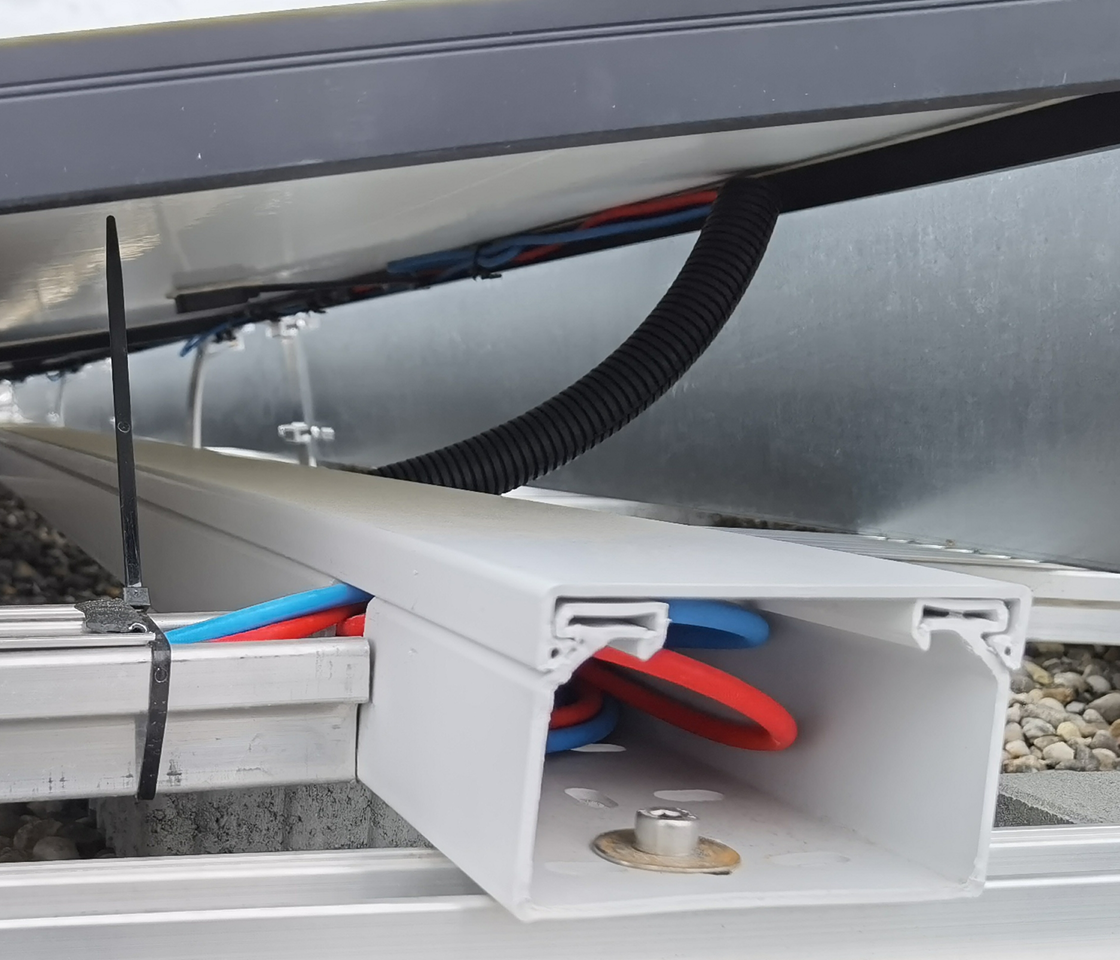

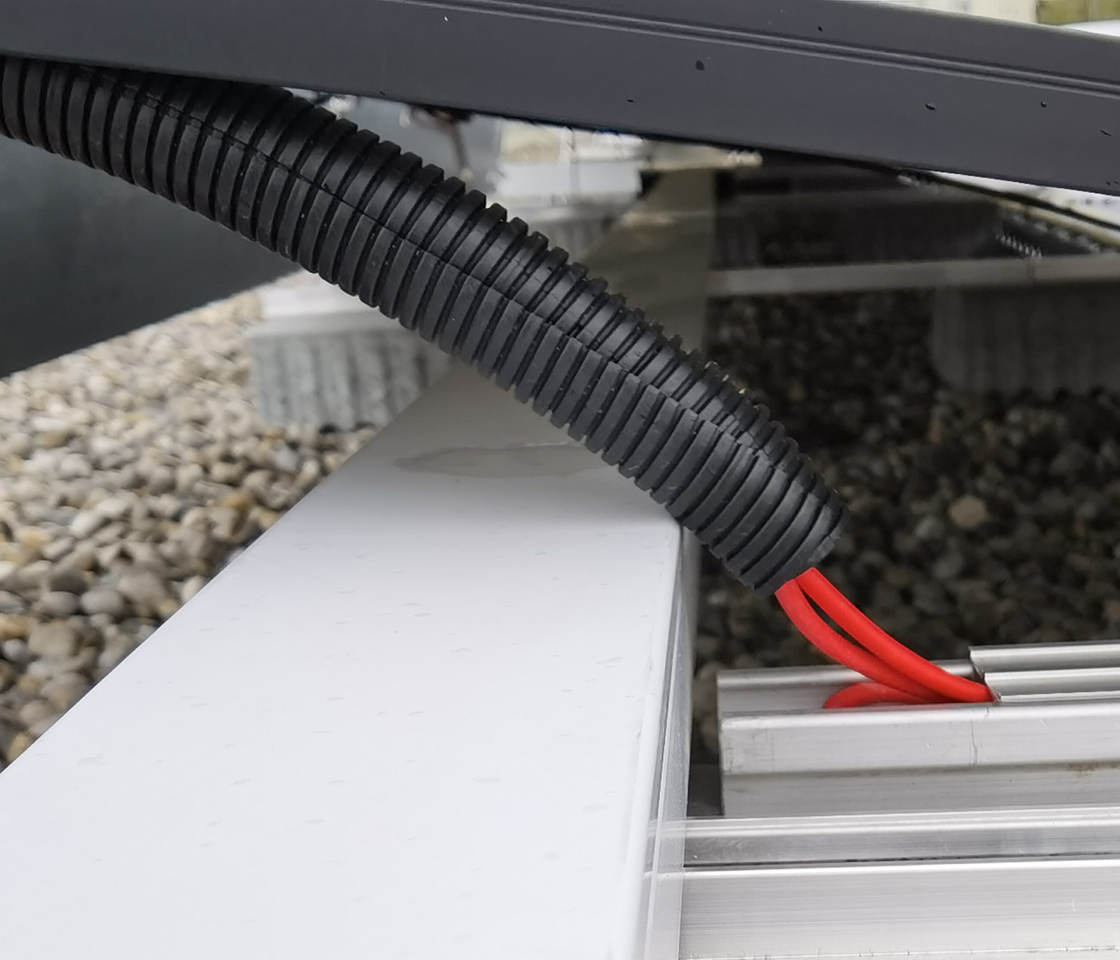

Very high flexibility in a medium-weight design. High mechanical resistance (rodent protection), splash-resistant, in two parts. Complementary profile geometry allowing precise joining of pipe parts and preventing twisting. Versatile, such as for solar and photovoltaic installations, vehicle and machinery construction, electrical industry, switchgear and apparatus construction, and where high chemical resistance is required. UV-stable and cadmium-free. Complies with the requirements of the VKF (Association of Cantonal Fire Services) with fire behavior class RF2 and fire protection index 5.3.
Material
Polyamide 6
Sheathing material
Not sheathed
Lengthwise slotted
Yes
Closable (two-part)
Yes
Operating temperature
-40...+120 °C
Fire resistance according to UL94
Other
Flame accelerating
No
UV resistant
Yes
Oil resistant
No
Halogen free
Yes
Degree of protection (IP)
IP44
Bending strength
Flexible
With draw wire
No
High conducting inner coating
No
Approved according to UR
Yes
Approved according to CSA
No
Approved according to DIN 5510
No
Approved according to VdTÜV/GGVSEB
No
operating temperatur
-40…+120
Approved according to NF F 16-101
No
Approved according to LUL/British Standard
No
Approved according to Lloyd's Register TA
No
