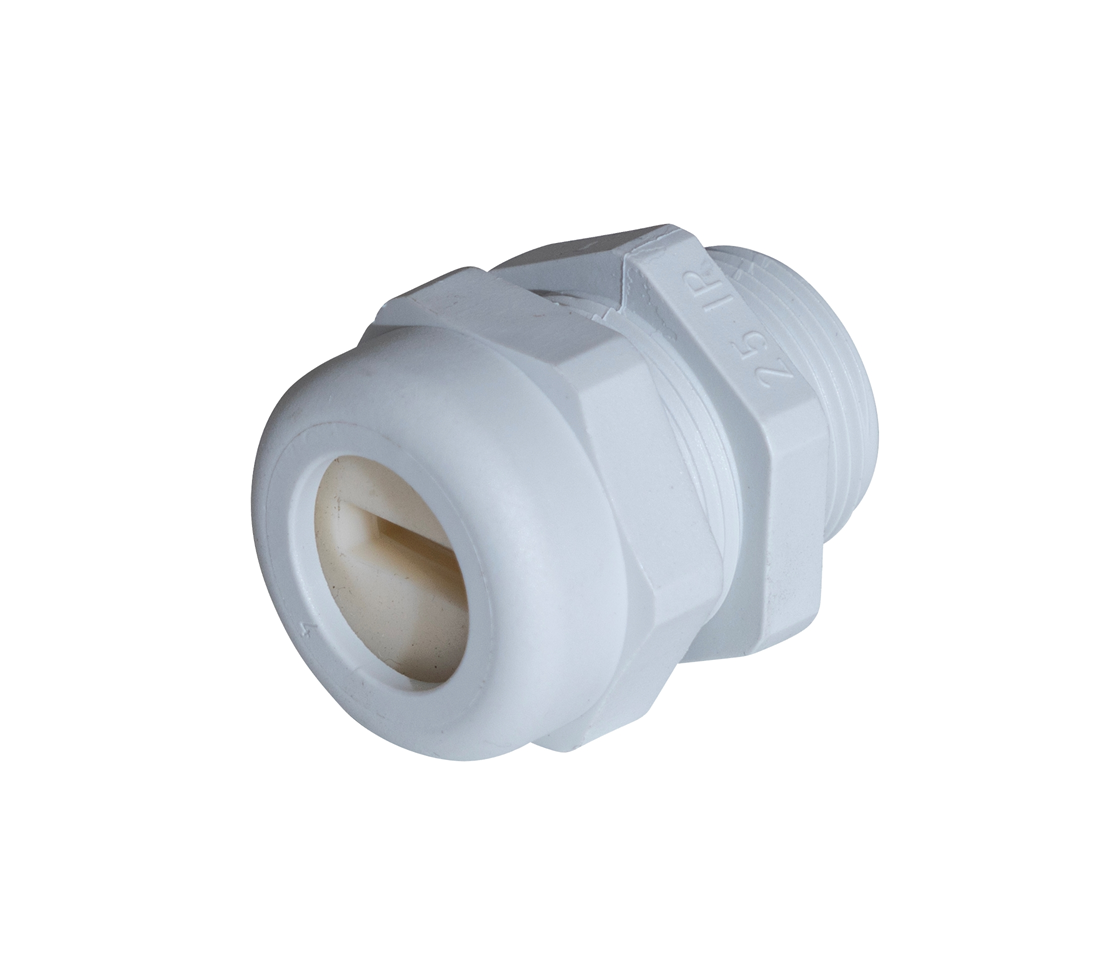

Cable gland for flat cables FLAKA K PA GFK (M), with rounded hole
Discover the aesthetically pleasing flat cable gland FLAKA K PA GFK (M) from Plica, a must-have for all electrical installations. This visually appealing gland is made from high-quality polyamide (PA), ensuring longevity and robustness. It is reinforced with fiberglass and does not require a locknut. The large clamping range, specially designed for flat cables, ensures a flexible and secure installation. It stands out for its high functionality, offering IP68 protection, making it completely dust-tight and resistant to prolonged submersion in water. Additionally, it is halogen-free, thus environmentally friendly. Its temperature range from -30 to +120 °C makes the gland extremely resistant to various environmental conditions. Compliant with EN 60423 standard, it is equipped with a rounded slot hole for easy installation. It features a high-quality sealing ring, but without a multiple density insert and melt adhesive. The sealing quality is ensured by Tefabloc, guaranteeing a reliable seal. Ideal for electricians and installers looking for a reliable, aesthetically pleasing, and simple solution for flat cable connections, the FLAKA K PA GFK (M) flat cable gland from Plica offers an optimal mix of quality, functionality and design.
Colour
Grey
Material
Plastic
Material quality
Polyamide (PA)
Surface protection
Untreated
Glass-fibre reinforced
Yes
Shock resistant
No
Bend radius protection/trumpet flare
No
With locknut
No
Flat cable coupling
Yes
Separable screw gland
No
Type of sealing
Sealing ring
Multi seal area
No
Operating temperature
-30...+120 °C
Degree of protection (IP)
IP68
Halogen free
Yes
UV-resistant
No
Explosion-tested version
No
For Ex-zone gas
None
For Ex-Zone dust
None
EMC-version
No
standard
opening shape
interior hot melt adhesive
No
sealing quality
24 Artikel
Reset filters
Filter
Item
Thread type
Nominal thread size metric/PG
number opening
Pitch thread mm
Thread length mm
Wrench width mm
Suitable for cable diameter mm
RAL-number
Availability
SU
Price / SUexcl. VAT
3D Modell Cadenas
- Item 905107160Thread type MetricNominal thread size metric/PG 16number openingPitch thread
mm 1.5Thread length
mm 8Wrench width
mm 19Suitable for cable diameter
mm 5x11RAL-number 7035AvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107200Thread type MetricNominal thread size metric/PG 20number openingPitch thread
mm 1.5Thread length
mm 9Wrench width
mm 24Suitable for cable diameter
mm 5x12RAL-number 7035AvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107201Thread type MetricNominal thread size metric/PG 20number openingPitch thread
mm 1.5Thread length
mm 9Wrench width
mm 24Suitable for cable diameter
mm 7.5x14RAL-number 7035AvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107202Thread type MetricNominal thread size metric/PG 20number openingPitch thread
mm 1.5Thread length
mm 9Wrench width
mm 27Suitable for cable diameter
mm 5x16RAL-number 7035AvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107203Thread type MetricNominal thread size metric/PG 20number openingPitch thread
mm 1.5Thread length
mm 9Wrench width
mm 27Suitable for cable diameter
mm 5x17RAL-number 7035AvailabilitySU 50 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107250Thread type MetricNominal thread size metric/PG 25number openingPitch thread
mm 1.5Thread length
mm 11Wrench width
mm 33Suitable for cable diameter
mm 7x18RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107251Thread type MetricNominal thread size metric/PG 25number openingPitch thread
mm 1.5Thread length
mm 11Wrench width
mm 33Suitable for cable diameter
mm 9x15RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107252Thread type MetricNominal thread size metric/PG 25number openingPitch thread
mm 1.5Thread length
mm 11Wrench width
mm 33Suitable for cable diameter
mm 8x25RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107320Thread type MetricNominal thread size metric/PG 32number openingPitch thread
mm 1.5Thread length
mm 12Wrench width
mm 42Suitable for cable diameter
mm 6x29RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107321Thread type MetricNominal thread size metric/PG 32number openingPitch thread
mm 1.5Thread length
mm 12Wrench width
mm 42Suitable for cable diameter
mm 6x30RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107400Thread type MetricNominal thread size metric/PG 40number openingPitch thread
mm 1.5Thread length
mm 15Wrench width
mm 55Suitable for cable diameter
mm 6x36RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VAT3D Modell CadenasEtiketten druckenEtiketten druckenAdd item to the shopping cart - Item 905107401Thread type MetricNominal thread size metric/PG 40number openingPitch thread
mm 1.5Thread length
mm 15Wrench width
mm 55Suitable for cable diameter
mm 8x36RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107402Thread type MetricNominal thread size metric/PG 40number openingPitch thread
mm 1.5Thread length
mm 15Wrench width
mm 55Suitable for cable diameter
mm 11x34RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107403Thread type MetricNominal thread size metric/PG 40number openingPitch thread
mm 1.5Thread length
mm 15Wrench width
mm 55Suitable for cable diameter
mm 12x35RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107404Thread type MetricNominal thread size metric/PG 40number openingPitch thread
mm 1.5Thread length
mm 15Wrench width
mm 55Suitable for cable diameter
mm 13x28RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107405Thread type MetricNominal thread size metric/PG 40number openingPitch thread
mm 1.5Thread length
mm 15Wrench width
mm 55Suitable for cable diameter
mm 10x38RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107406Thread type MetricNominal thread size metric/PG 40number openingPitch thread
mm 1.5Thread length
mm 15Wrench width
mm 55Suitable for cable diameter
mm 13x35RAL-number 7035AvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107501Thread type MetricNominal thread size metric/PG 50number openingPitch thread
mm 1.5Thread length
mm 15Wrench width
mm 65Suitable for cable diameter
mm 14x37RAL-number 7035AvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107502Thread type MetricNominal thread size metric/PG 50number openingPitch thread
mm 1.5Thread length
mm 15Wrench width
mm 65Suitable for cable diameter
mm 6.5x47RAL-number 7035AvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107503Thread type MetricNominal thread size metric/PG 50number openingPitch thread
mm 1.5Thread length
mm 15Wrench width
mm 65Suitable for cable diameter
mm 9x43RAL-number 7035AvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107630Thread type MetricNominal thread size metric/PG 63number openingPitch thread
mm 1.5Thread length
mm 15Wrench width
mm 70Suitable for cable diameter
mm 14.5x39RAL-number 7035AvailabilitySU 5 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107631Thread type MetricNominal thread size metric/PG 63number openingPitch thread
mm 1.5Thread length
mm 15Wrench width
mm 70Suitable for cable diameter
mm 15x45RAL-number 7035AvailabilitySU 5 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107632Thread type MetricNominal thread size metric/PG 63number openingPitch thread
mm 1.5Thread length
mm 15Wrench width
mm 70Suitable for cable diameter
mm 7x18RAL-number 7035AvailabilitySU 5 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 905107633Thread type MetricNominal thread size metric/PG 63number openingPitch thread
mm 1.5Thread length
mm 15Wrench width
mm 70Suitable for cable diameter
mm 5x8RAL-number 7035AvailabilitySU 5 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
