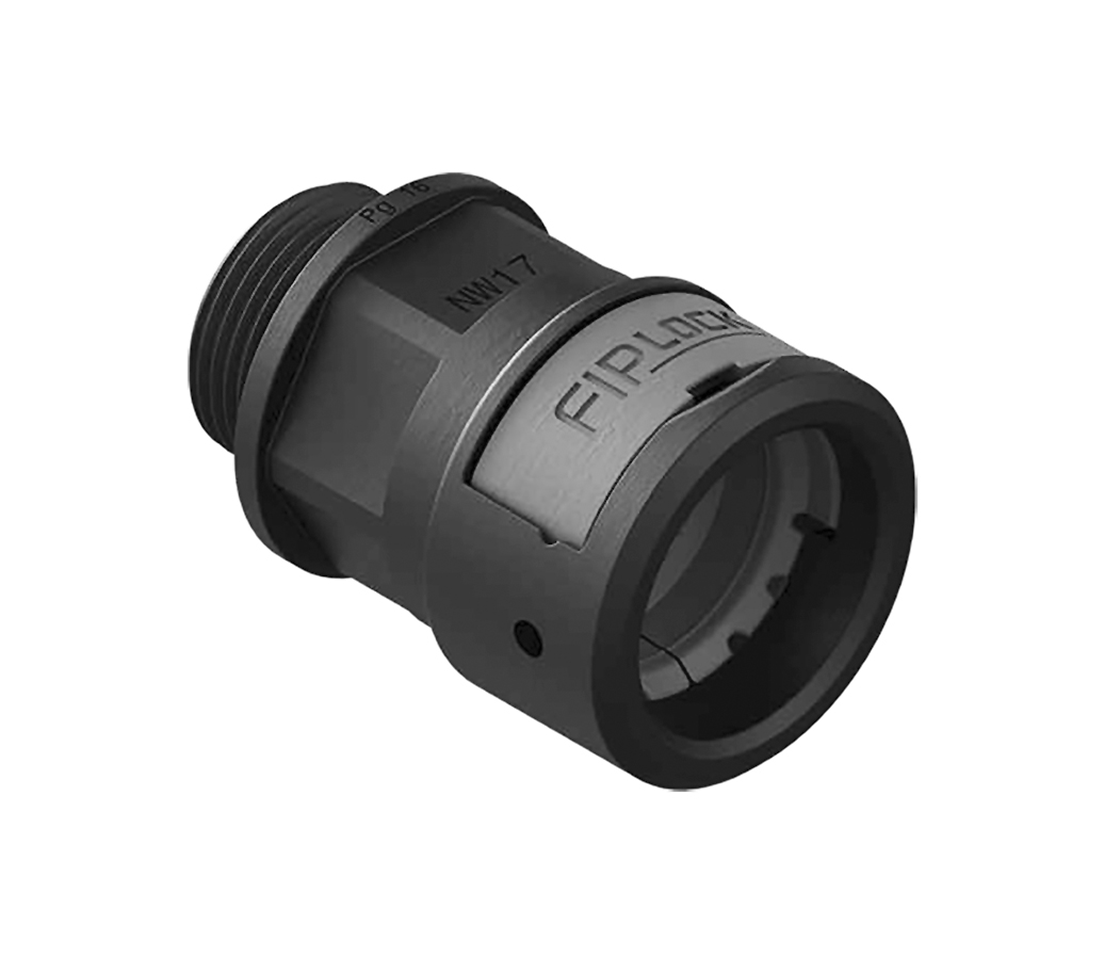

ASPA-PG - Straight Cable Protection Fitting, PG Thread, IP69
The ASPA-PG cable protection fitting with PG thread, made from specially modified, halogen-free Polyamide 6, is an ideal solution for cable protection. Self-extinguishing and resistant to most chemical media, it offers the highest protection class IP69 through its 360° locking system and internal pipe seals, in conjunction with FIPLOCK corrugated tubes. UV-resistant and suitable for temperatures from -50 to +120 °C, it is the perfect choice for demanding environments.
series
ASPA-PG
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
Other
Thread
Type of connection
Plug-in connection
Construction type
External thread
Revolving thread
No
Model
Straight
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
18 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SU in CHFexcl. VAT
- Item 880000506Nominal diameter
mm 7Thread connection size PG7Lowest inner diameter hose
mm 7.8Max. outer diameter hose
mm 22Colour BlackThread length
mm 11Total length
mm 39AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000507Nominal diameter
mm 7Thread connection size PG7Lowest inner diameter hose
mm 7.8Max. outer diameter hose
mm 22Colour GreyThread length
mm 11Total length
mm 39AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000508Nominal diameter
mm 10Thread connection size PG9Lowest inner diameter hose
mm 10.9Max. outer diameter hose
mm 24.7Colour BlackThread length
mm 11Total length
mm 40AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000509Nominal diameter
mm 10Thread connection size PG9Lowest inner diameter hose
mm 10.9Max. outer diameter hose
mm 24.7Colour GreyThread length
mm 11Total length
mm 40AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000510Nominal diameter
mm 12Thread connection size PG11Lowest inner diameter hose
mm 12Max. outer diameter hose
mm 28.5Colour BlackThread length
mm 11Total length
mm 42AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000511Nominal diameter
mm 12Thread connection size PG11Lowest inner diameter hose
mm 12Max. outer diameter hose
mm 28.5Colour GreyThread length
mm 11Total length
mm 42AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000512Nominal diameter
mm 12Thread connection size PG13.5Lowest inner diameter hose
mm 13.7Max. outer diameter hose
mm 28.5Colour BlackThread length
mm 11Total length
mm 42AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000513Nominal diameter
mm 12Thread connection size PG13.5Lowest inner diameter hose
mm 13.7Max. outer diameter hose
mm 28.5Colour GreyThread length
mm 11Total length
mm 42AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000514Nominal diameter
mm 17Thread connection size PG16Lowest inner diameter hose
mm 15.8Max. outer diameter hose
mm 34Colour BlackThread length
mm 11Total length
mm 51.1AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000515Nominal diameter
mm 17Thread connection size PG16Lowest inner diameter hose
mm 15.8Max. outer diameter hose
mm 34Colour GreyThread length
mm 11Total length
mm 51.1AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000516Nominal diameter
mm 23Thread connection size PG21Lowest inner diameter hose
mm 21.4Max. outer diameter hose
mm 41.7Colour BlackThread length
mm 12Total length
mm 52.1AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000517Nominal diameter
mm 23Thread connection size PG21Lowest inner diameter hose
mm 21.4Max. outer diameter hose
mm 41.7Colour GreyThread length
mm 12Total length
mm 52.1AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000518Nominal diameter
mm 29Thread connection size PG29Lowest inner diameter hose
mm 29.4Max. outer diameter hose
mm 48.4Colour BlackThread length
mm 12Total length
mm 52.4AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000519Nominal diameter
mm 29Thread connection size PG29Lowest inner diameter hose
mm 29.4Max. outer diameter hose
mm 48.4Colour GreyThread length
mm 12Total length
mm 52.4AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000520Nominal diameter
mm 36Thread connection size PG36Lowest inner diameter hose
mm 35.4Max. outer diameter hose
mm 59.7Colour BlackThread length
mm 13Total length
mm 66.8AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000521Nominal diameter
mm 36Thread connection size PG36Lowest inner diameter hose
mm 35.4Max. outer diameter hose
mm 59.7Colour GreyThread length
mm 13Total length
mm 66.8AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000522Nominal diameter
mm 48Thread connection size PG48Lowest inner diameter hose
mm 50.5Max. outer diameter hose
mm 71Colour BlackThread length
mm 13Total length
mm 66.8AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000523Nominal diameter
mm 48Thread connection size PG48Lowest inner diameter hose
mm 50.5Max. outer diameter hose
mm 71Colour GreyThread length
mm 13Total length
mm 66.8AvailabilitySU 1 PakPrice / SU in CHF excl. VATEtiketten druckenAdd item to the shopping cart
