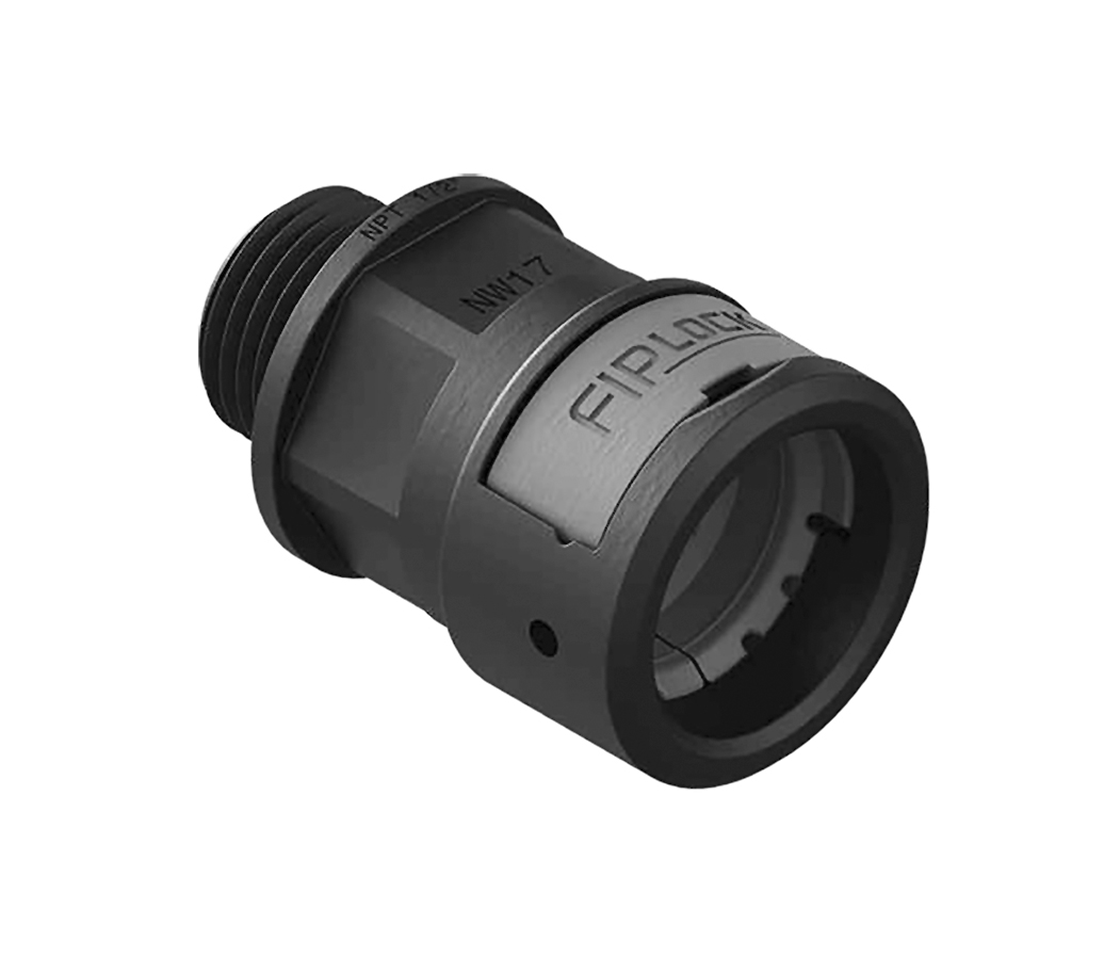

ASPA-NPT - Straight Cable Protection Fitting, NPT Thread, IP69
The ASPA-NPT cable protection fitting with NPT threading made from specially modified, halogen-free Polyamide 6, is self-extinguishing and resistant to most chemical media. Featuring an innovative 360° locking system and internal pipe seals, in conjunction with our FIPLOCK corrugated tubes, the ASPA-NPT achieves the highest protection class of IP69, ensuring optimal protection against the ingress of dust and water. UV-resistant and suitable for temperatures ranging from -50 to +120 °C, it is the ideal choice for demanding applications.
series
ASPA-NPT
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Thread type
NPT
Thread
Type of connection
Plug-in connection
Construction type
External thread
Revolving thread
No
Model
Straight
Degree of protection (IP)
IP66/IP67/IP68/IP69
Halogen free
Yes
UV-resistant
Yes
Operating temperature
-50...+120 °C
16 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SUexcl. VAT
- Item 880000490Nominal diameter
mm 10Thread connection size OtherLowest inner diameter hose
mm 9.8Max. outer diameter hose
mm 24.7Colour BlackThread length
mm 10.4Total length
mm 39.4AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000491Nominal diameter
mm 10Thread connection size OtherLowest inner diameter hose
mm 9.8Max. outer diameter hose
mm 24.7Colour GreyThread length
mm 10.4Total length
mm 39.4AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000492Nominal diameter
mm 12Thread connection size OtherLowest inner diameter hose
mm 13Max. outer diameter hose
mm 28.5Colour BlackThread length
mm 13.5Total length
mm 44.5AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000493Nominal diameter
mm 12Thread connection size OtherLowest inner diameter hose
mm 13Max. outer diameter hose
mm 28.5Colour GreyThread length
mm 13.5Total length
mm 44.5AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000494Nominal diameter
mm 17Thread connection size OtherLowest inner diameter hose
mm 13Max. outer diameter hose
mm 34Colour BlackThread length
mm 13.5Total length
mm 53.6AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000495Nominal diameter
mm 17Thread connection size OtherLowest inner diameter hose
mm 13Max. outer diameter hose
mm 34Colour GreyThread length
mm 13.5Total length
mm 53.6AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000496Nominal diameter
mm 23Thread connection size OtherLowest inner diameter hose
mm 18.4Max. outer diameter hose
mm 41.7Colour BlackThread length
mm 14Total length
mm 54.1AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000497Nominal diameter
mm 23Thread connection size OtherLowest inner diameter hose
mm 18.4Max. outer diameter hose
mm 41.7Colour GreyThread length
mm 14Total length
mm 54.1AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000498Nominal diameter
mm 29Thread connection size OtherLowest inner diameter hose
mm 24.1Max. outer diameter hose
mm 48.4Colour BlackThread length
mm 17.3Total length
mm 57.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000499Nominal diameter
mm 29Thread connection size OtherLowest inner diameter hose
mm 24.1Max. outer diameter hose
mm 48.4Colour GreyThread length
mm 17.3Total length
mm 57.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000500Nominal diameter
mm 36Thread connection size OtherLowest inner diameter hose
mm 32.2Max. outer diameter hose
mm 59.7Colour BlackThread length
mm 18Total length
mm 71.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000501Nominal diameter
mm 36Thread connection size OtherLowest inner diameter hose
mm 32.2Max. outer diameter hose
mm 59.7Colour GreyThread length
mm 18Total length
mm 71.7AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000502Nominal diameter
mm 48Thread connection size OtherLowest inner diameter hose
mm 38.8Max. outer diameter hose
mm 71Colour BlackThread length
mm 18.4Total length
mm 72.1AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000504Nominal diameter
mm 48Thread connection size OtherLowest inner diameter hose
mm 50.8Max. outer diameter hose
mm 71Colour BlackThread length
mm 19.2Total length
mm 72.9AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880000505Nominal diameter
mm 48Thread connection size OtherLowest inner diameter hose
mm 50.8Max. outer diameter hose
mm 71Colour GreyThread length
mm 19.2Total length
mm 72.9AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 880001342Nominal diameter
mm 48Thread connection size OtherLowest inner diameter hose
mm 32.2Max. outer diameter hose
mm 71Colour GreyThread length
mm 18.4Total length
mm 72.1AvailabilitySU 1 PakPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
