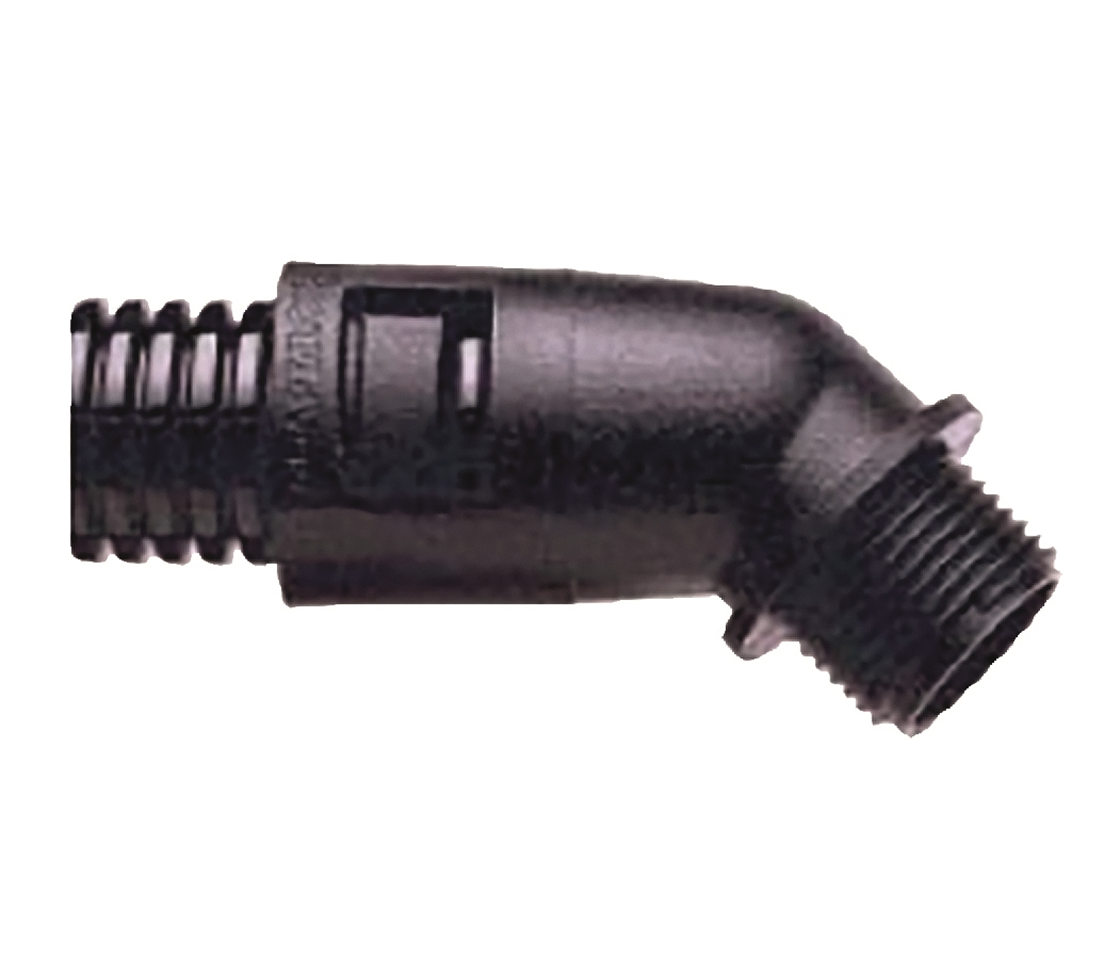

Conduit fitting ADAPTALOK 45 (PG)
One-part connector with two clips for corrugated conduits.
Material
Polyamide (PA)
Thread material
Polyamide (PA)
Type of connection
Snap connection
Construction type
External thread
Revolving thread
No
Model
45°-elbow
Degree of protection (IP)
IP66
Halogen free
No
UV-resistant
No
Operating temperature
-40...+120 °C
14 Artikel
Reset filters
Filter
Item
Nominal diameter mm
Thread connection size
Lowest inner diameter hose mm
Max. outer diameter hose mm
Colour
Thread length mm
Total length mm
Availability
SU
Price / SUexcl. VAT
- Item 803020009Nominal diameter
mm 10Thread connection size PG9Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803020013Nominal diameter
mm 12Thread connection size PG13.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803020014Nominal diameter
mm 17Thread connection size PG13.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803020016Nominal diameter
mm 17Thread connection size PG16Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803020021Nominal diameter
mm 23Thread connection size PG21Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803020029Nominal diameter
mm 29Thread connection size PG29Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803020036Nominal diameter
mm 36Thread connection size PG36Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 2 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803020048Nominal diameter
mm 48Thread connection size PG48Lowest inner diameter hose
mmMax. outer diameter hose
mmColour GreyThread length
mmTotal length
mmAvailabilitySU 2 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803020111Nominal diameter
mm 12Thread connection size PG11Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803020113Nominal diameter
mm 12Thread connection size PG13.5Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803020116Nominal diameter
mm 17Thread connection size PG16Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803020121Nominal diameter
mm 23Thread connection size PG11Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 20 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803020129Nominal diameter
mm 29Thread connection size PG29Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 10 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart - Item 803020148Nominal diameter
mm 48Thread connection size PG48Lowest inner diameter hose
mmMax. outer diameter hose
mmColour BlackThread length
mmTotal length
mmAvailabilitySU 2 StkPrice / SU excl. VATEtiketten druckenAdd item to the shopping cart
